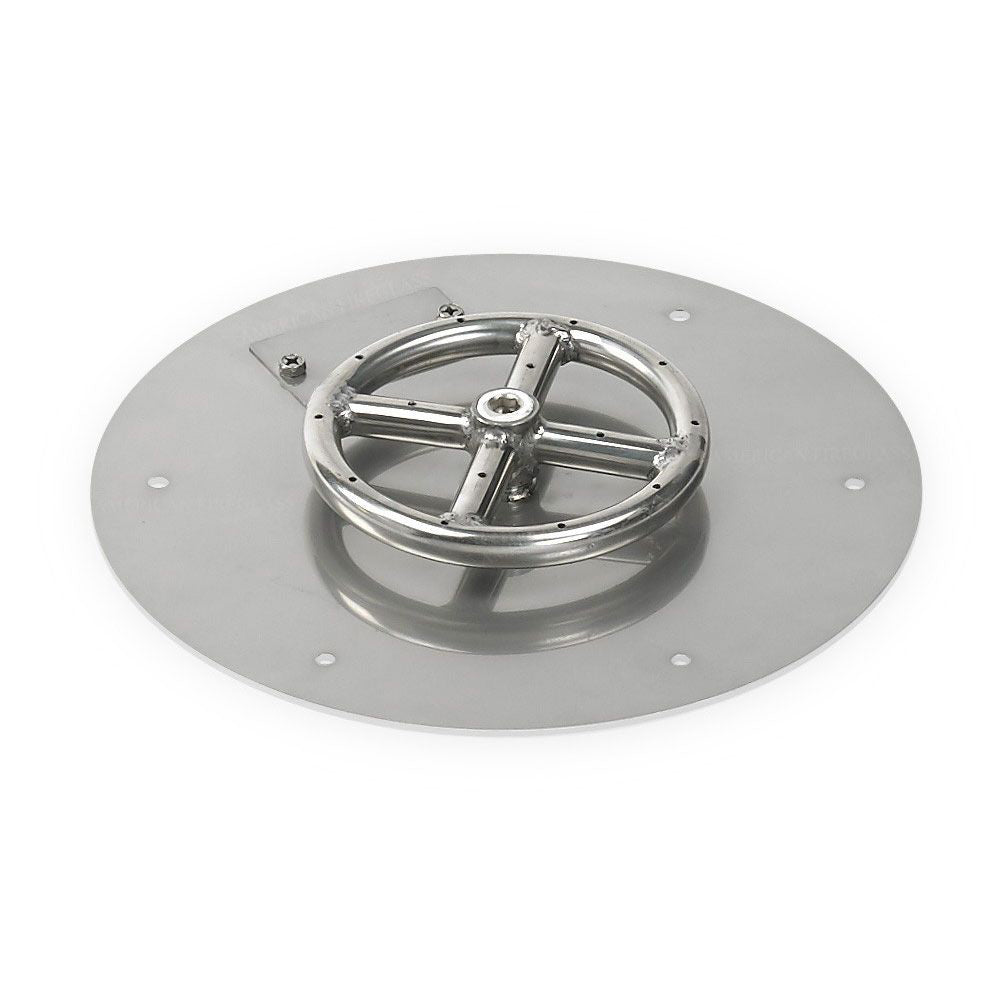

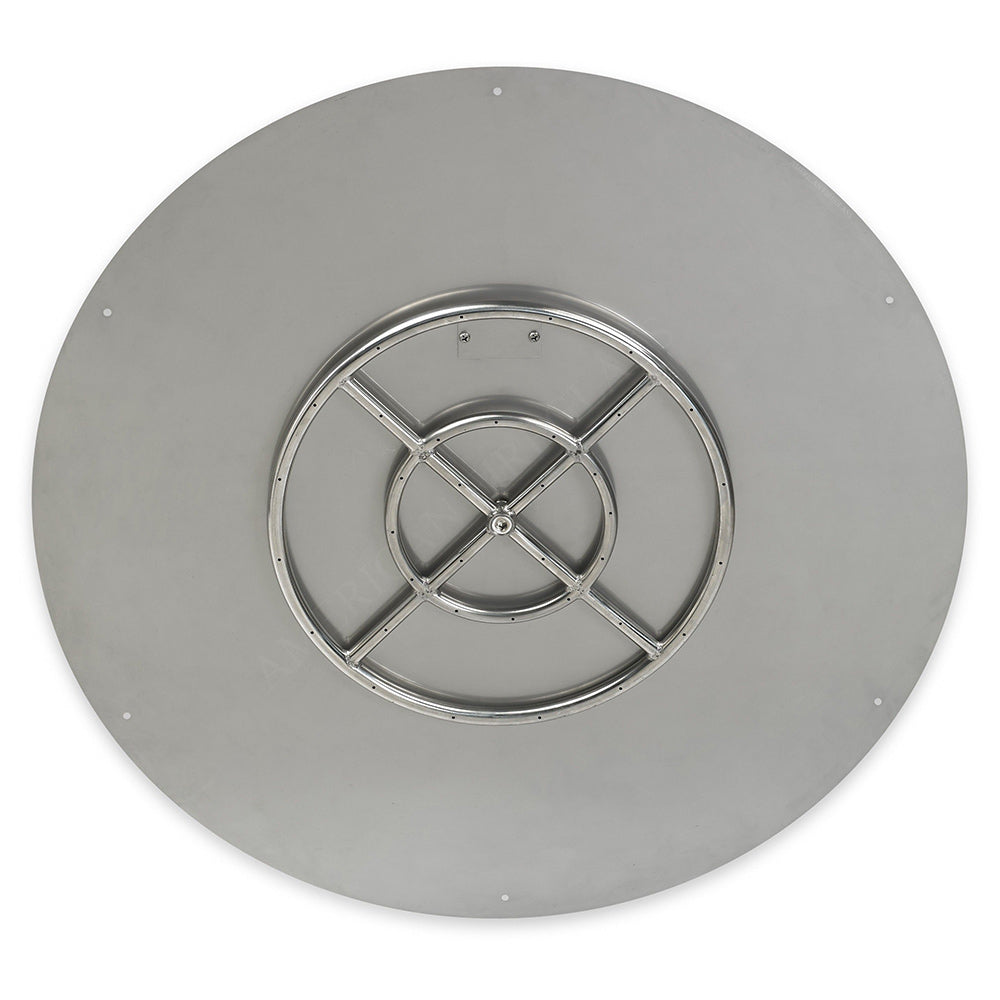

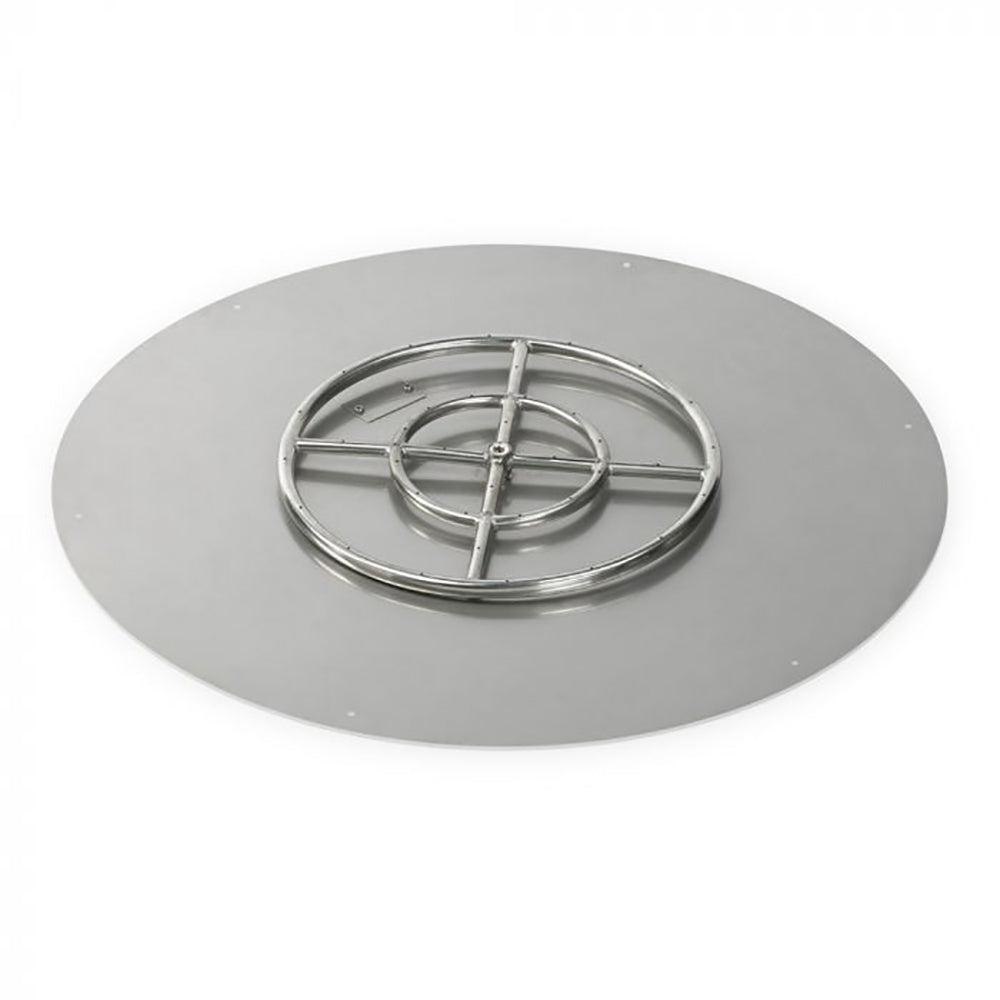

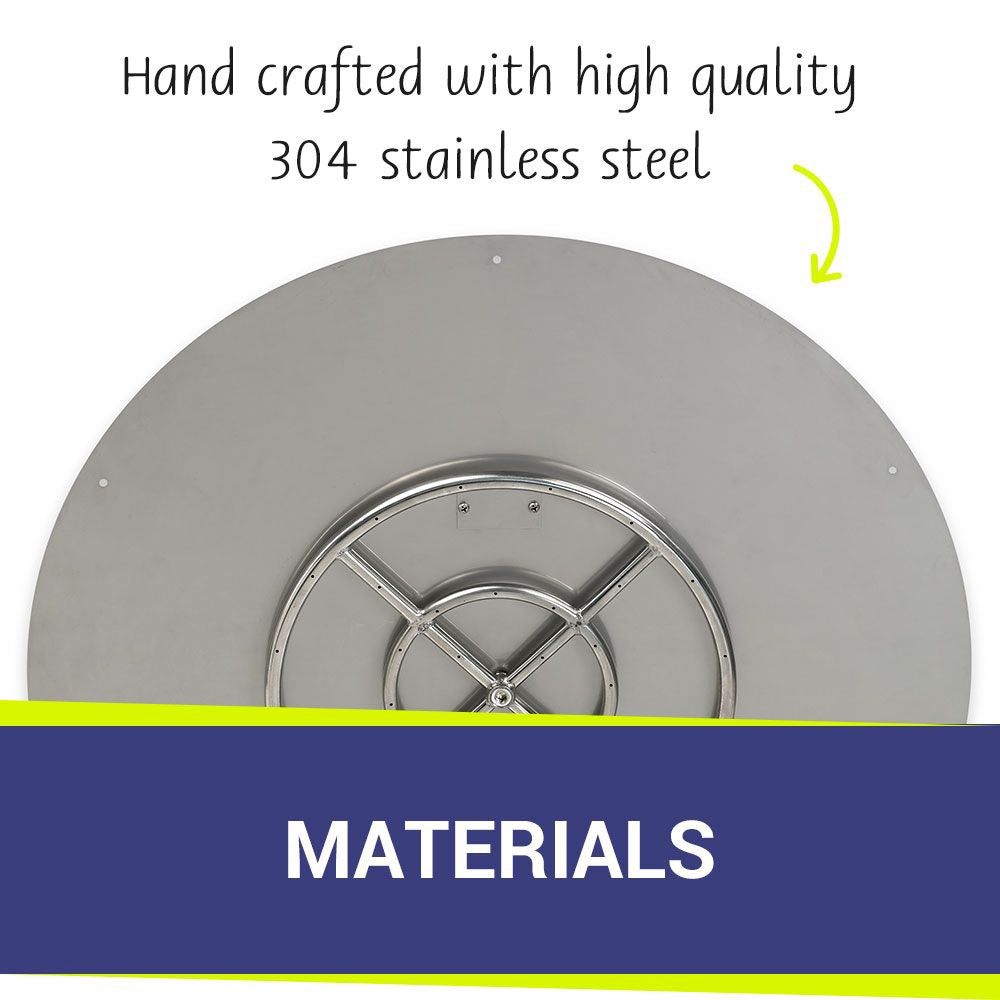

American Fire Glass Fire Pit Burner Pan with Burner, Round Flat

What to Consider When Building a Gas Fire Pit:

• Gas Supply - Before you begin designing your fire pit, first determine your gas supply
• Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
• For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
• For Propane*: Supply Pressure should be set between 8" - 11" Water Column

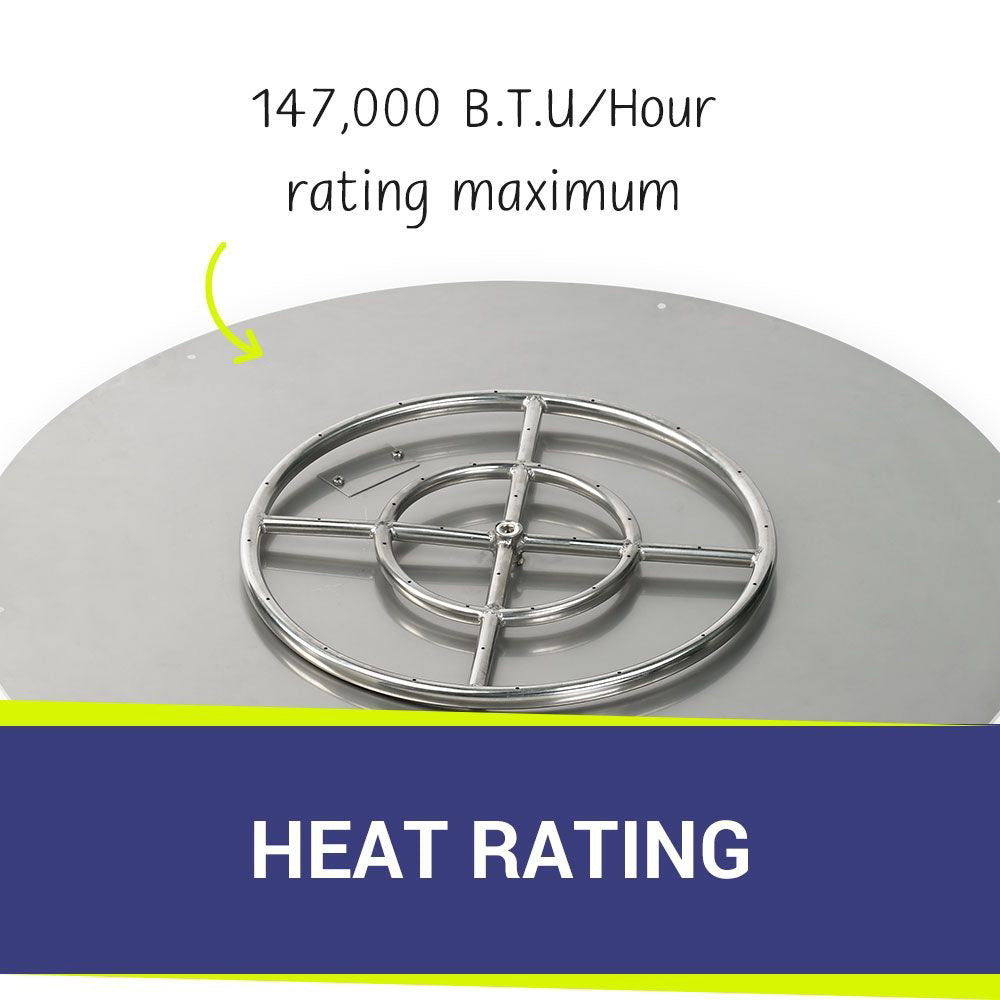

• *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.

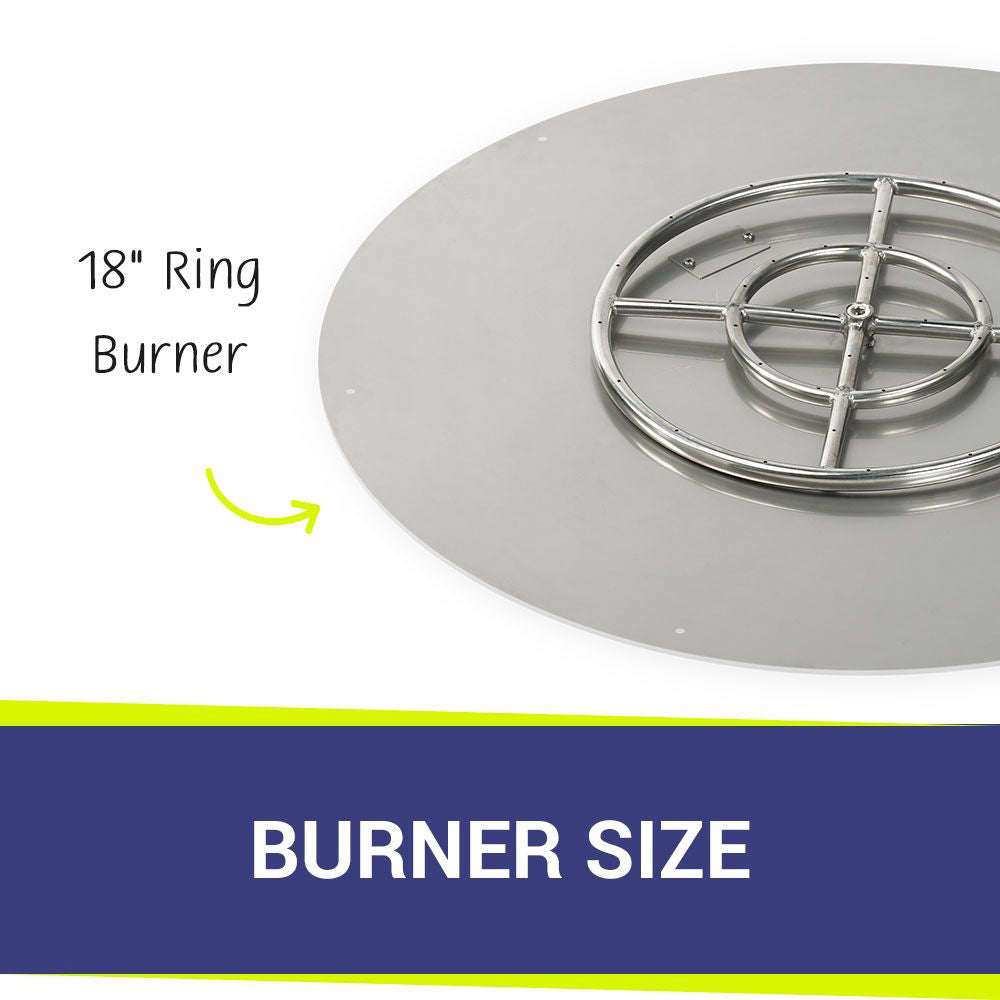

• Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
• Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit

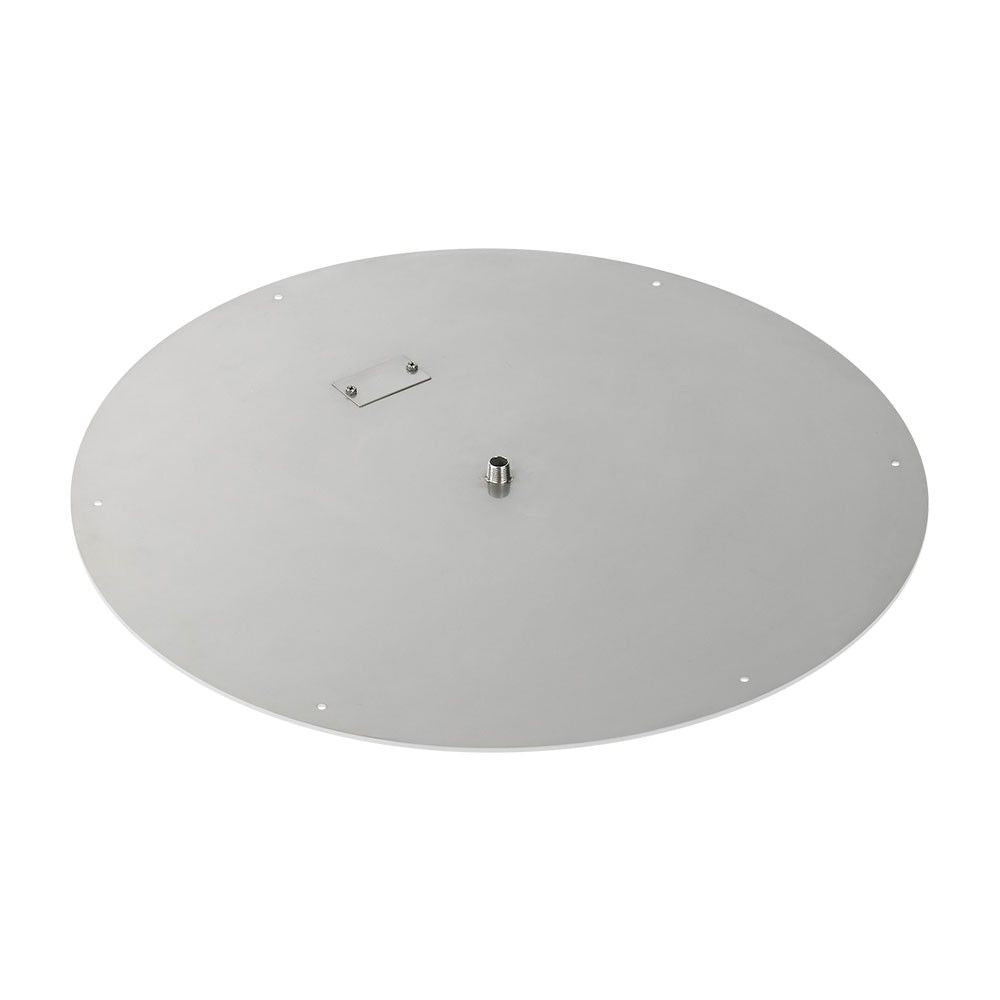

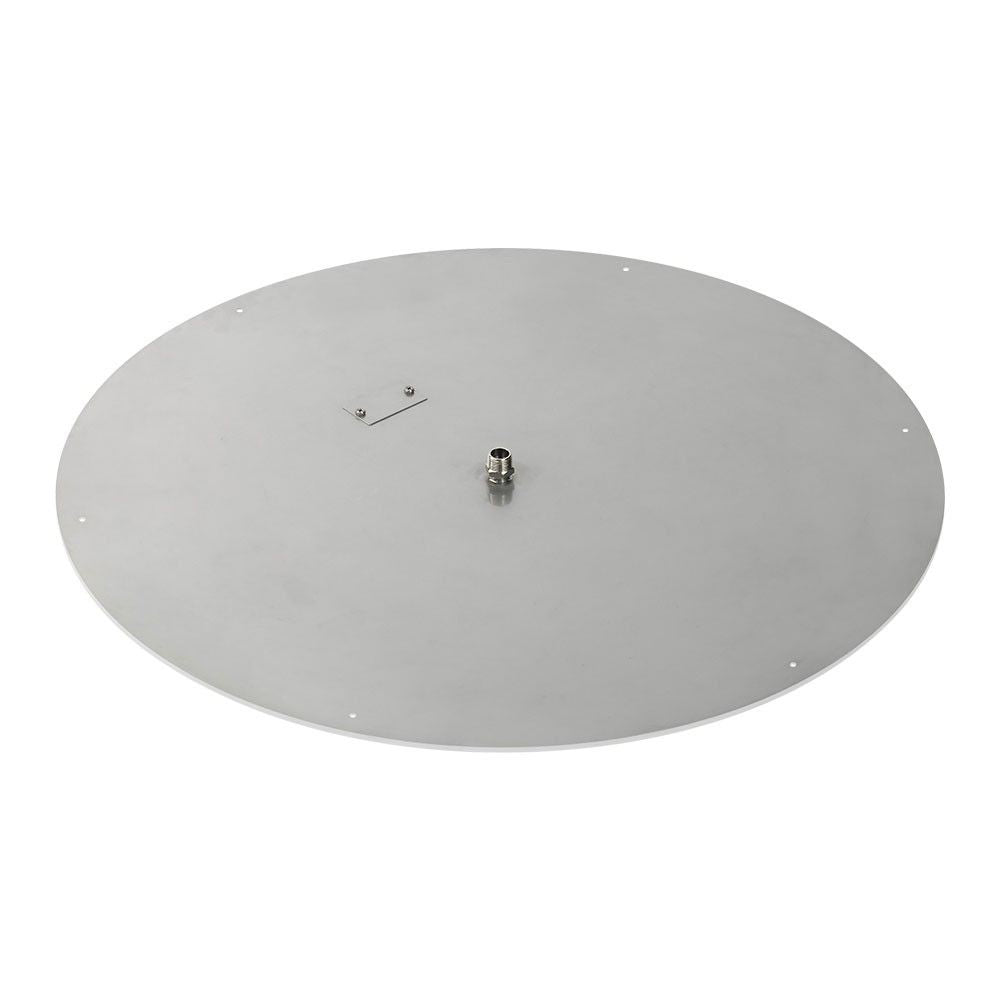

• Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
• A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
• The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
• Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
• An external shut off valve is not required with this kit, but may be an option for added safety
• Ventilation - For all fire pit burners, adequate ventilation is required
• The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
• Installation Collars - Are designed to simplify the installation of a fire pit pan
• Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws

























































































• Fire Media - Is the final step to finishing a gas fire pit
• Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
