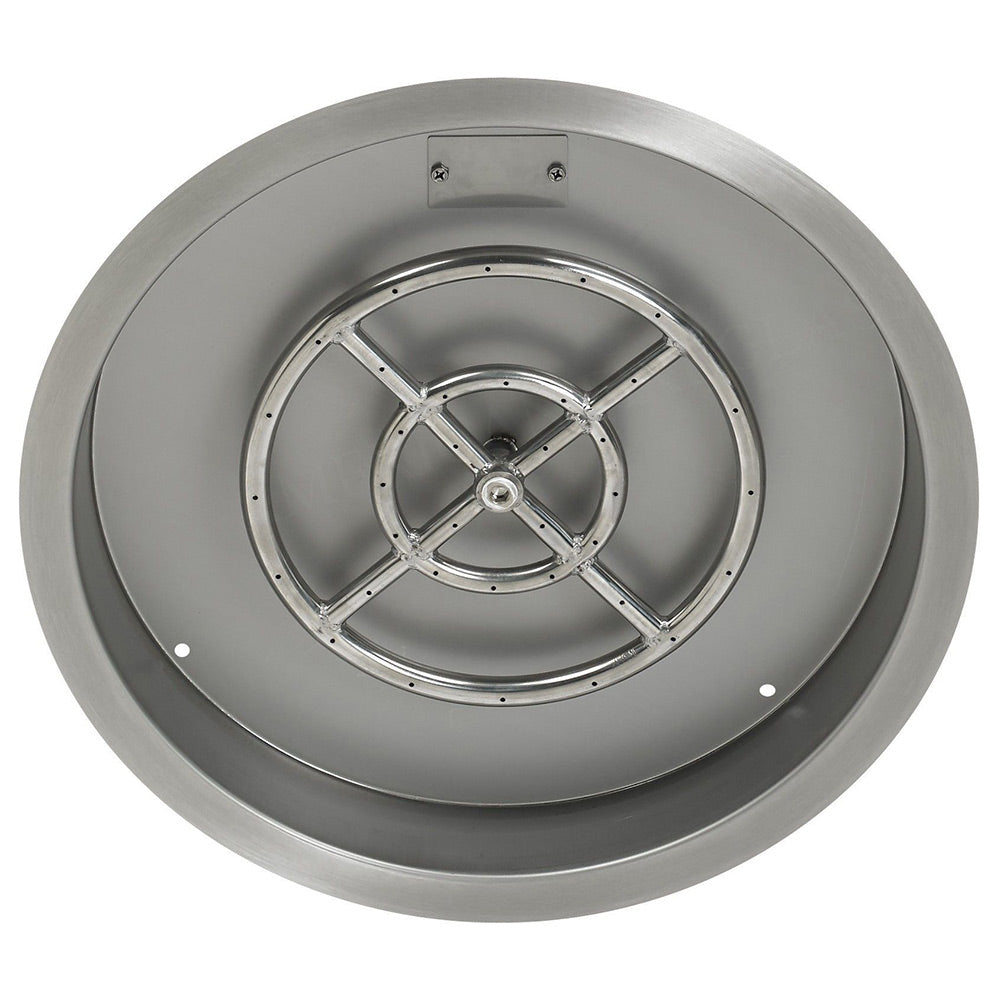

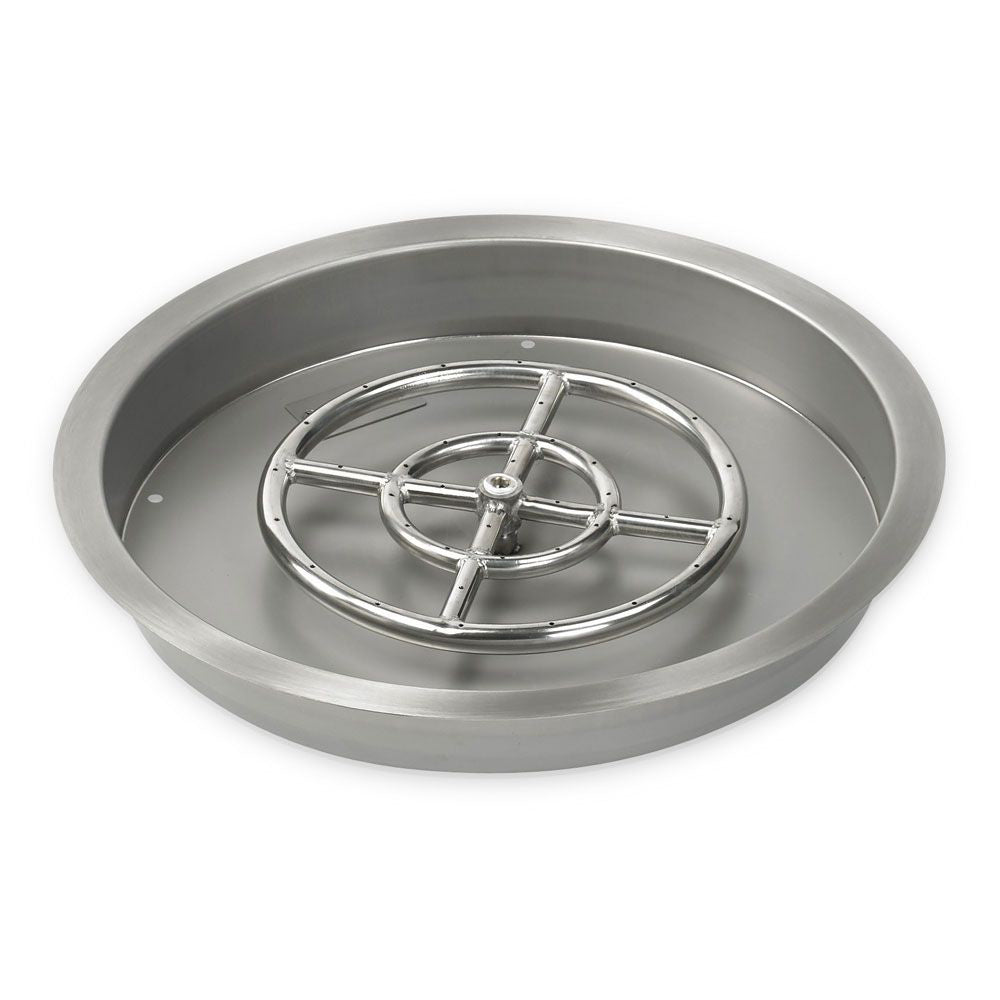

American Fire Glass Round Stainless Steel Pan with Burner
  • American Fire Glass Round Stainless Steel Pan with Burner
  • American Fire Glass Round Stainless Steel Pan with Burner
  • American Fire Glass Round Stainless Steel Pan with Burner
  • American Fire Glass Round Stainless Steel Pan with Burner
  • American Fire Glass Round Stainless Steel Pan with Burner
  • American Fire Glass Round Stainless Steel Pan with Burner
  • American Fire Glass Round Stainless Steel Pan with Burner
  • American Fire Glass Round Stainless Steel Pan with Burner
  • American Fire Glass Round Stainless Steel Pan with Burner
American Fire Glass Round Stainless Steel Pan with Burner

American Fire Glass
Starting at $461.99

American Fire Glass Round Stainless Steel Pan with Burner
SKU: AFG-RSP-Config
Free Shipping!
Usually Ships in 2-4 Business Days

Price:
Starting at $461.99
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features

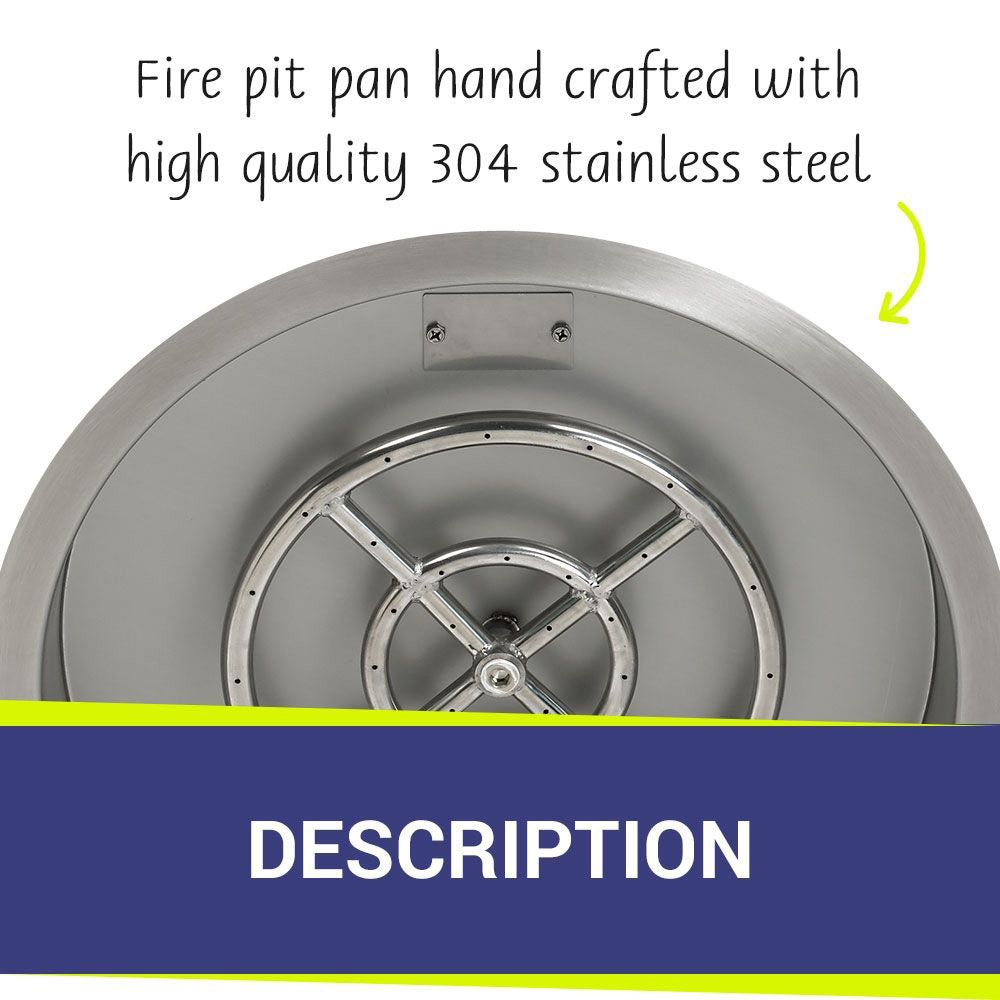

  • Heavy Duty Stainless Steel Construction - #304 stainless steel for durability and longevity
  • Oil Rubbed Bronze Finish - Pan is hard finished with a bronze look

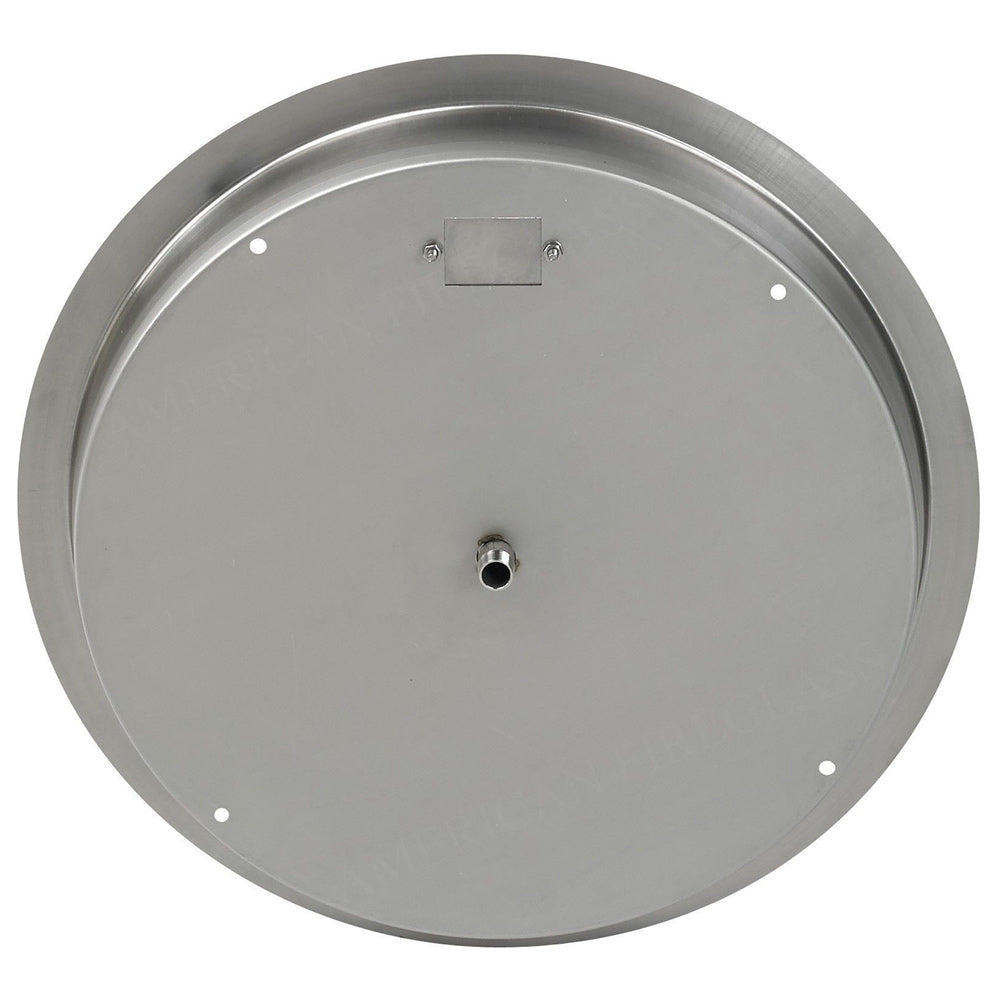

  • Weep Holes - Pre-cut holes help pan drainage and increase longevity of the unit

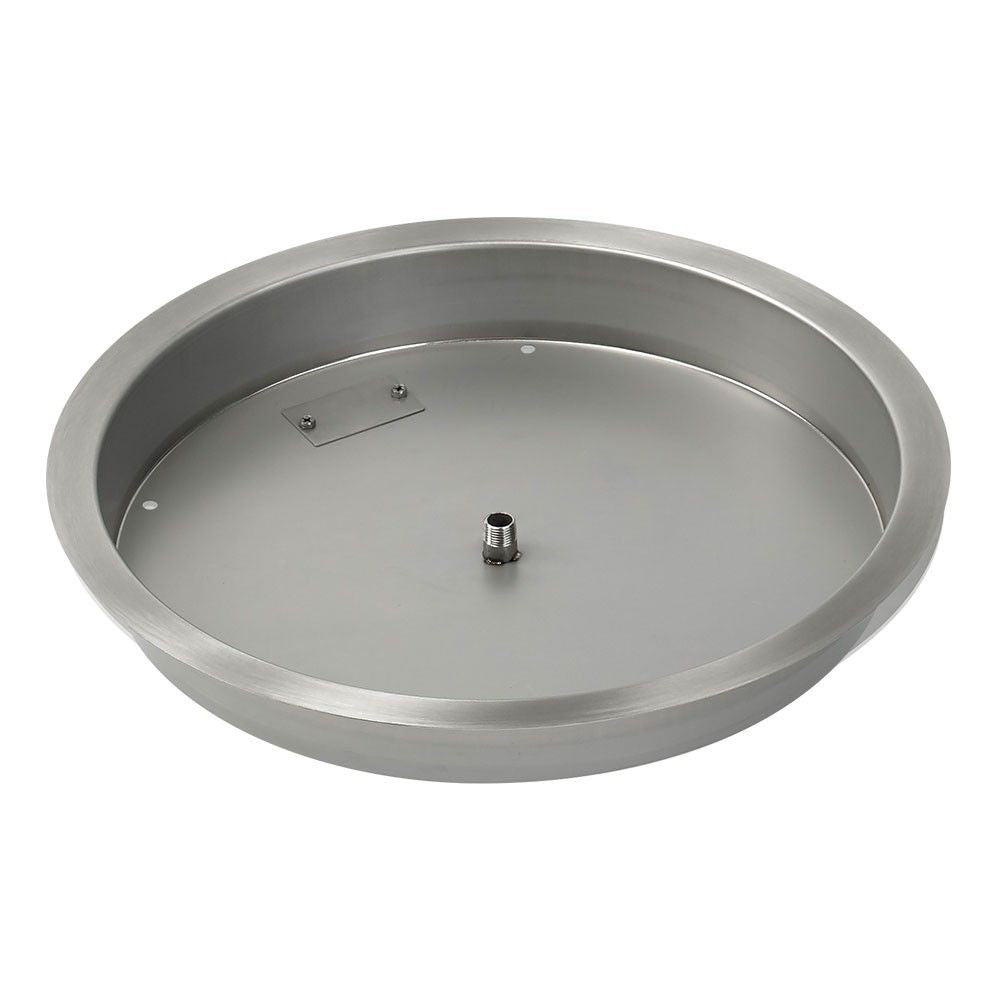

  • Includes - Pan with 1-1/4-inch flange
    • Product Description
    The American Fire Glass Round Stainless Steel Pan with Burner offers a premium finished stainless steel round fire pit pan for your fire pit project. Built for durability and longevity, the round bowl pan offer some of the best fire pit components available today. The pan is manufactured from hand crafted, rust-resisting 304 stainless steel and finished with an oil rubbed bronze look. With 2 different size options, these bowl pans from American Fire Glass are sure to help you finish your DIY fire pit project.
    Choose Product Options To See Full Specifications
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
