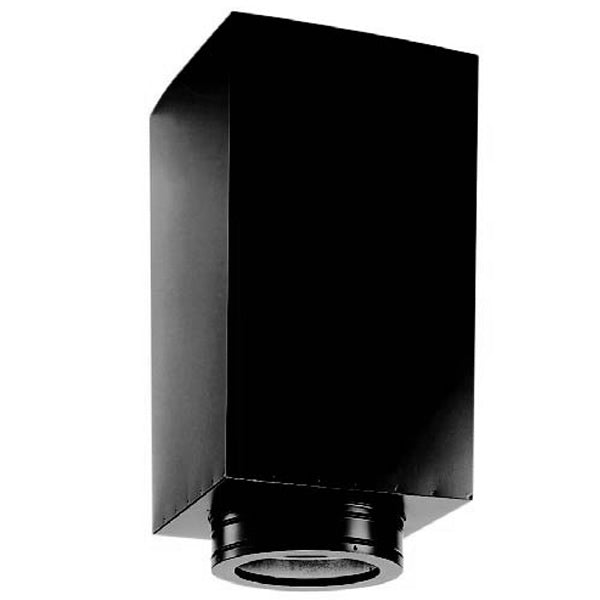

Square ceiling adapter with black flue collar and base ring
  • Square ceiling adapter with black flue collar and base ring

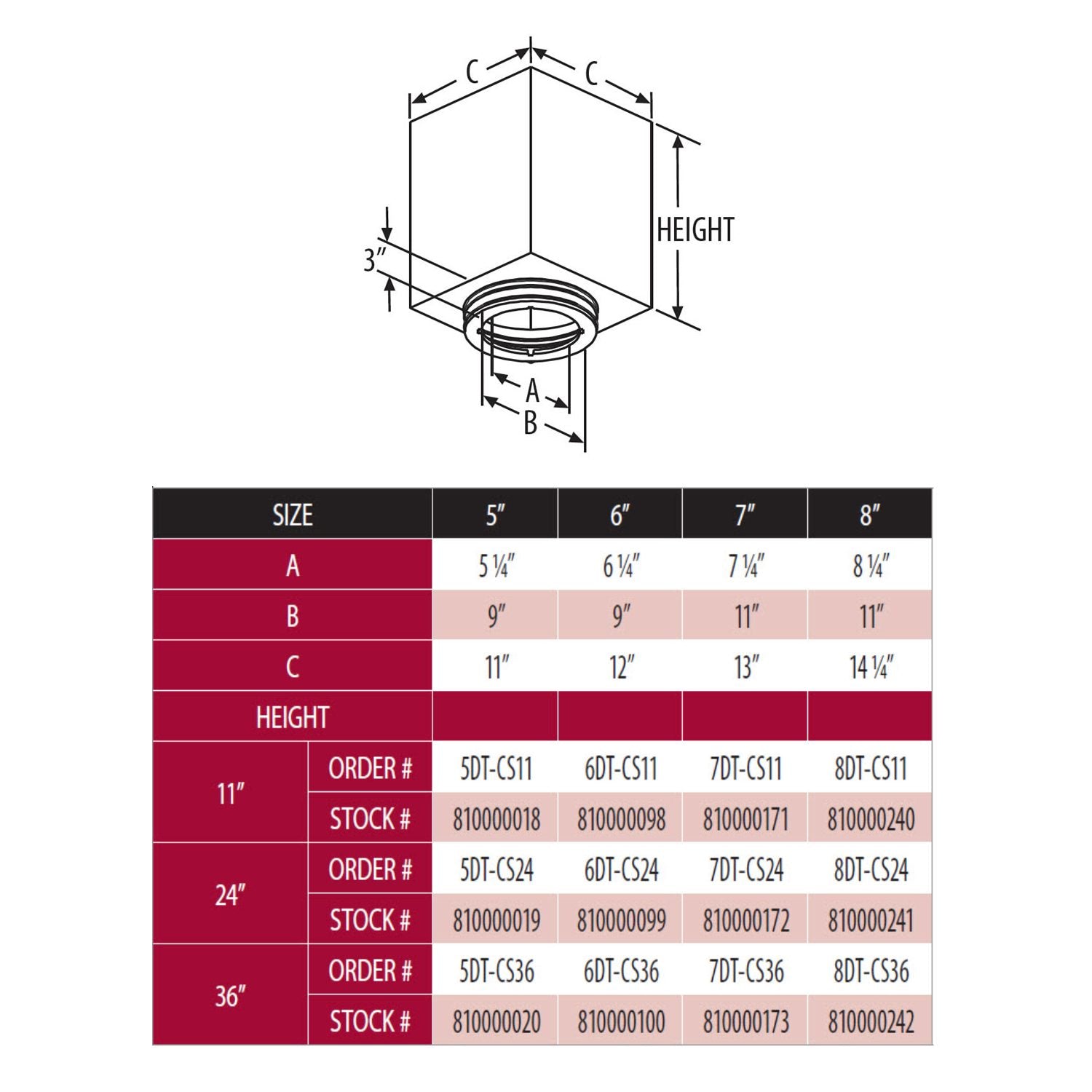

  • Ceiling adapter dimension diagram with circular collar and labeled sizing chart

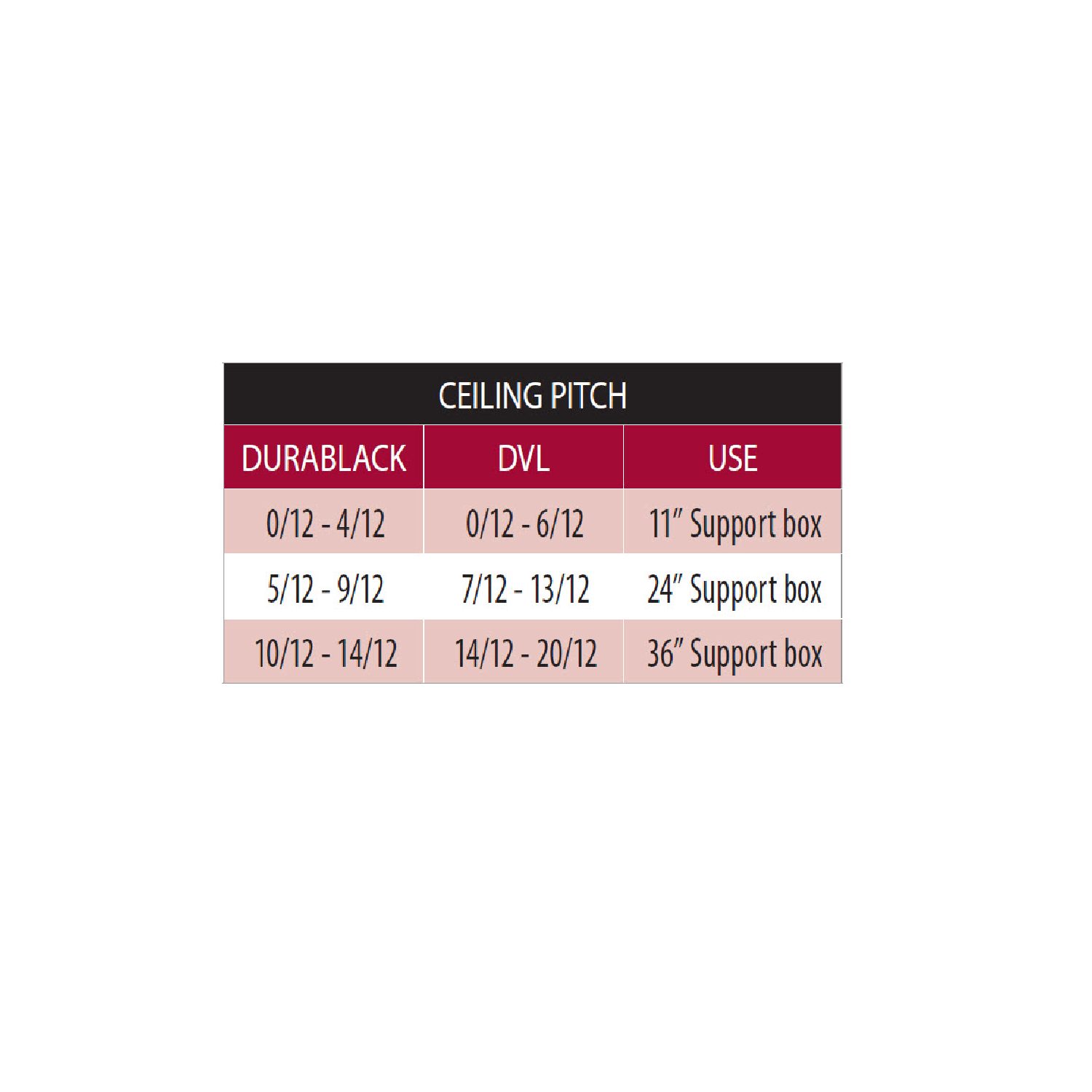

  • Ceiling pitch compatibility chart for support box placement
DuraVent 5DT-CS DuraTech Square Ceilinges, 5-Inch Diameter

Duravent
$396.69

DuraVent 5DT-CS DuraTech Square Ceilinges, 5-Inch Diameter

SKU: 5DT-CS-Config
Free Shipping!
Usually Ships in 1-2 Business Days

Price:

$396.69
view full details

Optional Accessories:
Description Specifications Downloads
Product Features
  • Pipe Class - Class A Chimney Pipe
  • Designed For Use With - Wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built
  • Certifications - UL 103 HT and ULC S604 (MH7399) listed
  • Includes - Support Box and 2-Inch wide trim collar
    • Product Description

    The DuraVent 5DT-CS DuraTech Square Ceilinges, 5-Inch Diameter provides a high quality blackes for your DuraTech chimney system. A 2-inch wide trim collar is included. This supports chimney pipe and provides a positive connection between thees and chimney with a built-in twist-lock. This square ceilinges is suitable for both flat and cathedral (A-Frame) ceiling applications, as well as short attic spaces. It fits between standard 16-inch on center joists and most manufactured home applications. The square ceilinges supports up to 60 feet of DuraTech Chimney. An adapter is needed to attach DVL or DuraBlack to thees.

    DuraTech is a double-wall chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood. DuraTech is designed for normal, continuous operation at 1,000 degree flue gas temps. NOTE: Venting components should be installed by a licensed installer in accordance with local codes and within the manufacturer's specified guidelines as noted in your appliance's installation manual.

    Choose Product Options To See Full Specifications
    Product Resources

    DuraVent

    DuraVent has been the industry standard for venting since 1956, building a reputation on safety, innovation, and reliable performance. Their chimney and venting systems are engineered to meet strict building codes while providing efficient exhaust for your fireplace or stove. This component delivers the secure fit and durable construction that professionals trust. Get a safe, reliable chimney and venting that performs.
