HPC Fire Drop-In Fire Pit Burner Pan, Linear Interlink - Burner Included

HPC Fire
Starting at $372.84

HPC Fire Drop-In Fire Pit Burner Pan, Linear Interlink - Burner Included
SKU: ILSS-Config
Fuel Type:Propane
Free Shipping!

Price:
Starting at $372.84
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features
  • Heavy Duty Construction - Complete 304 stainless steel construction ensures a long lasting and durable product
  • Interlink Style Pan - Linear interlink pan features a unique design to easily build into an enclosure
  • Weep Holes - Drilled holes in the burner pan allow proper water drainage
  • Welded Nipple Assembly - Unique threaded nipple mounts to the center of the pan to connect the gas supply
    • Product Description

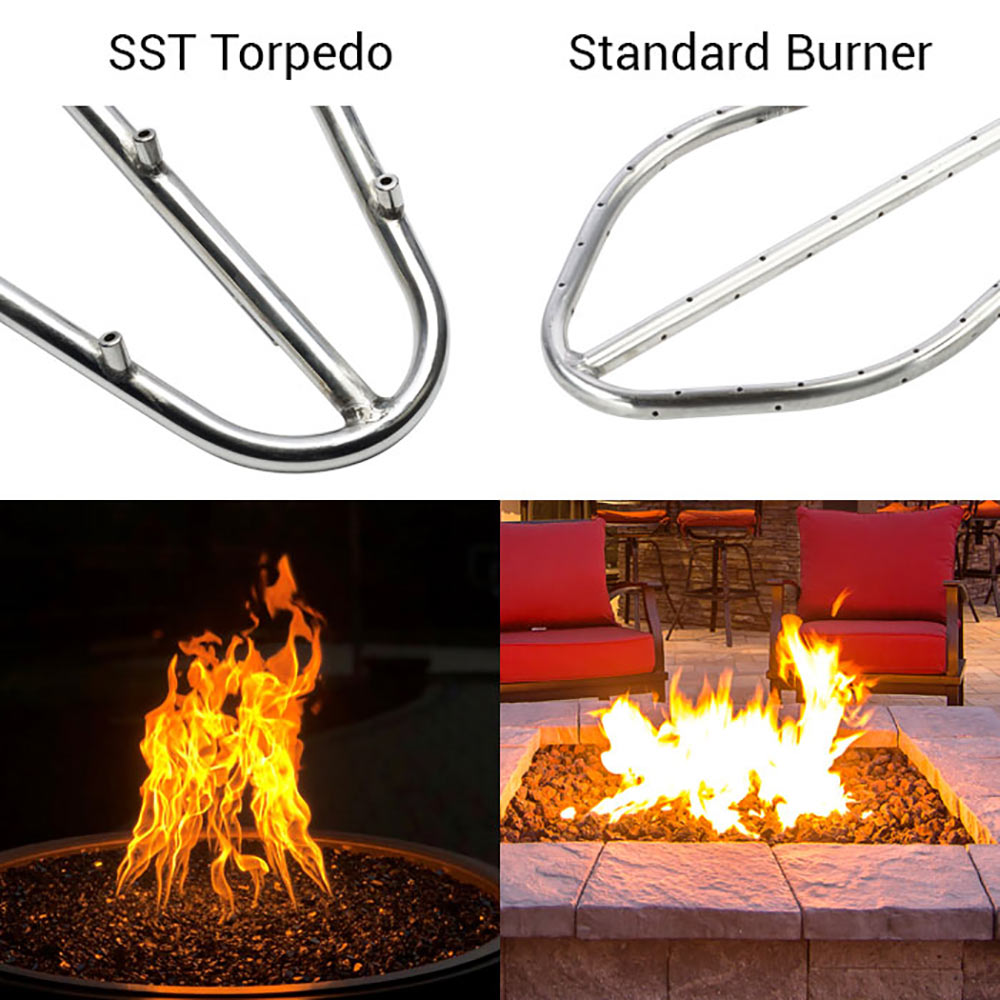

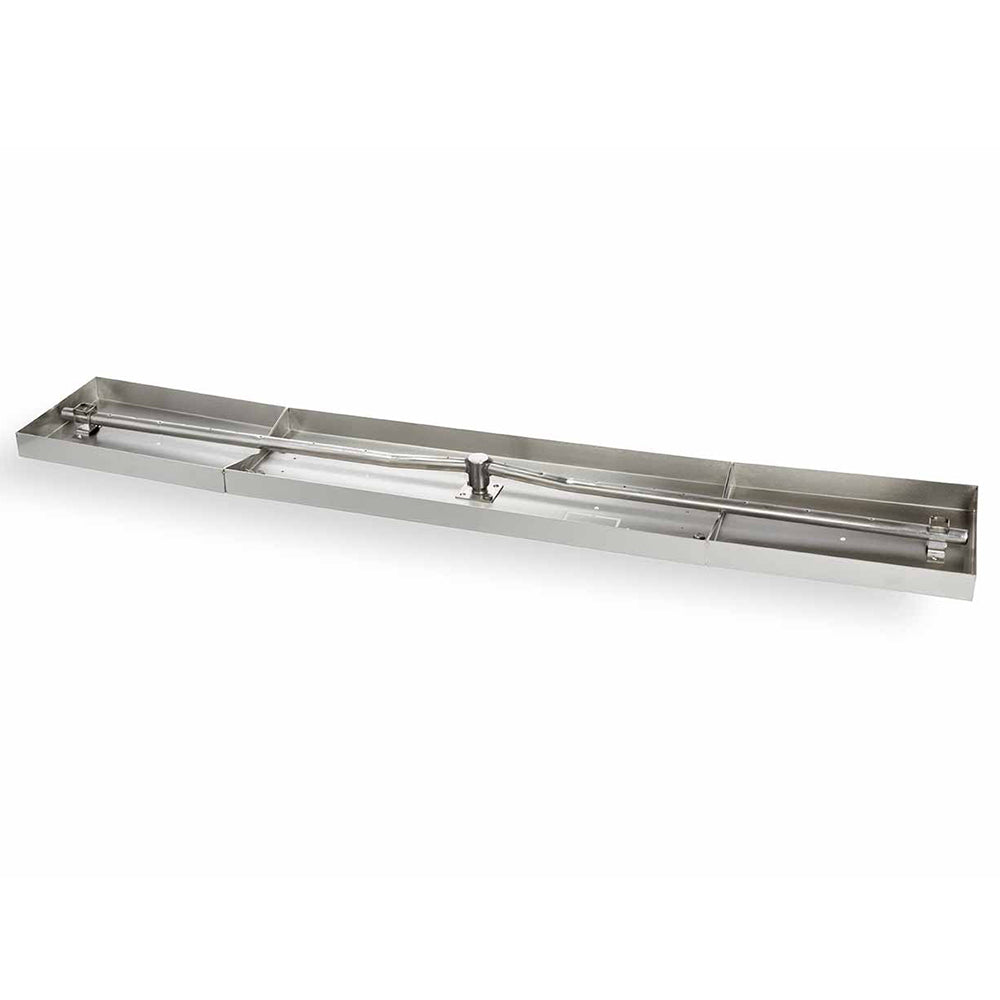

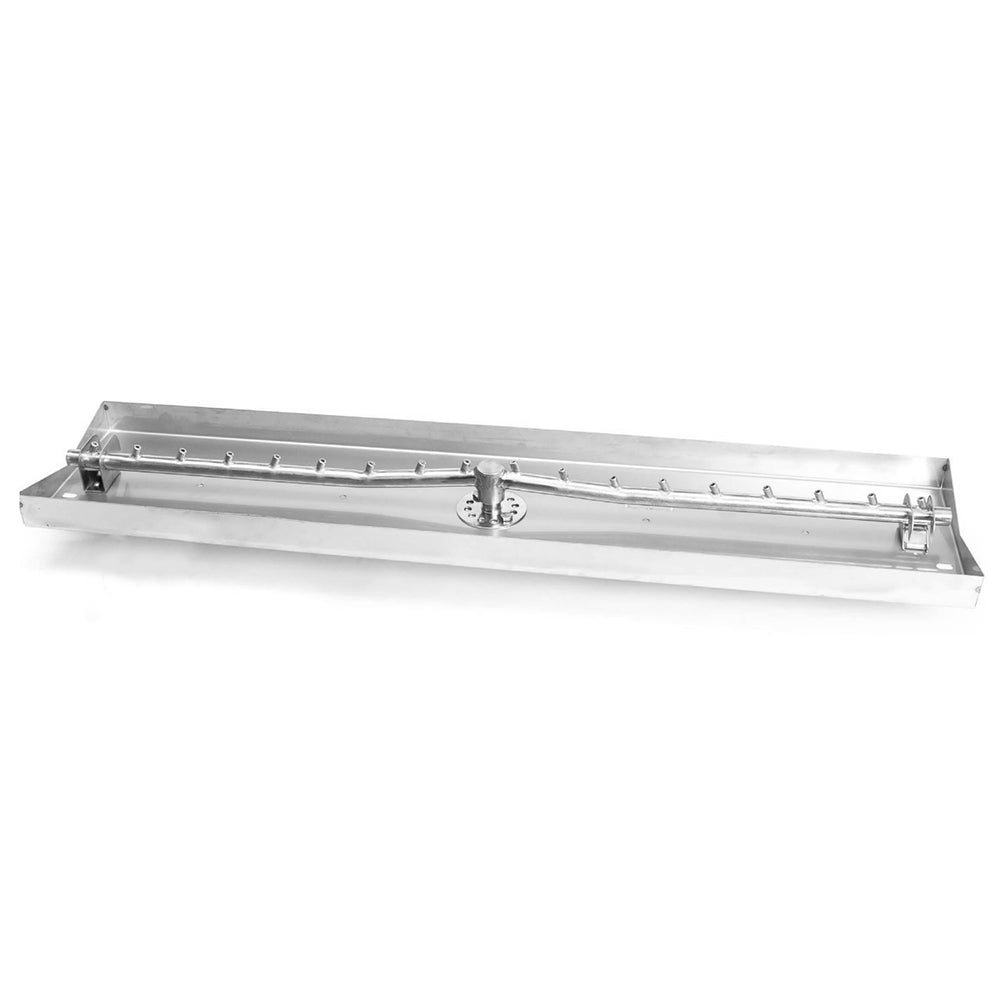

    The HPC Fire Drop-In Fire Pit Burner Pan, Linear Interlink - Burner Included provides a high quality fire pit burner and pan to help complete the installation of your gas fire pit project. The linear interlink pan is made of high quality 304 stainless steel while the depth of the pan provides space for your fire media and the construction offers a simple tray to install into a properly sized opening. The pan features weep holes for water drainage and comes with a welded nipple and mounting hardware to properly secure the burner in the center of the pan. The burner kits can be chosen in a standard configuration or with the innovative Torpedo nozzles, which create a taller, more robust flame more akin to a natural wood fire.

    The included linear T burner features a 304 stainless steel construction for the same long lasting durability. The burner ports are drilled, not punched, to ensure no noise is created by debris within the burner. This burner features a raised central gas inlet to prevent water from entering the gas line, is rated between 50,000 - 250,000 BTU, and is intended for use with either natural gas or propane to produce a 10 inch flame height the entire length of the burner. If propane is selected an air mixer and a coupler will be included to ensure a proper ratio of oxygen and propane for an efficient combustion.

    Gas fire pit pans are a crucial component to maintain the safety and quality of your fire pit. Burner pans help support your burner ring, separate the air mixer from fire media (for LP applications), and save money by reducing the amount of fire media you would otherwise need to complete your fire pit. Pans also help to minimize fuel settling below the pan, and help your fire pit drain properly, failure to do so may result in personal injury or explosion.

    Choose Product Options To See Full Specifications
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
