HPC Fire Penta Stainless Steel Fire Pit Burners

HPC Fire
Starting at $121.61

HPC Fire Penta Stainless Steel Fire Pit Burners
SKU: PENTA-Config
Fuel Type:Natural Gas
Free Shipping!
Today or Next Business Day

Price:
Starting at $121.61
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features

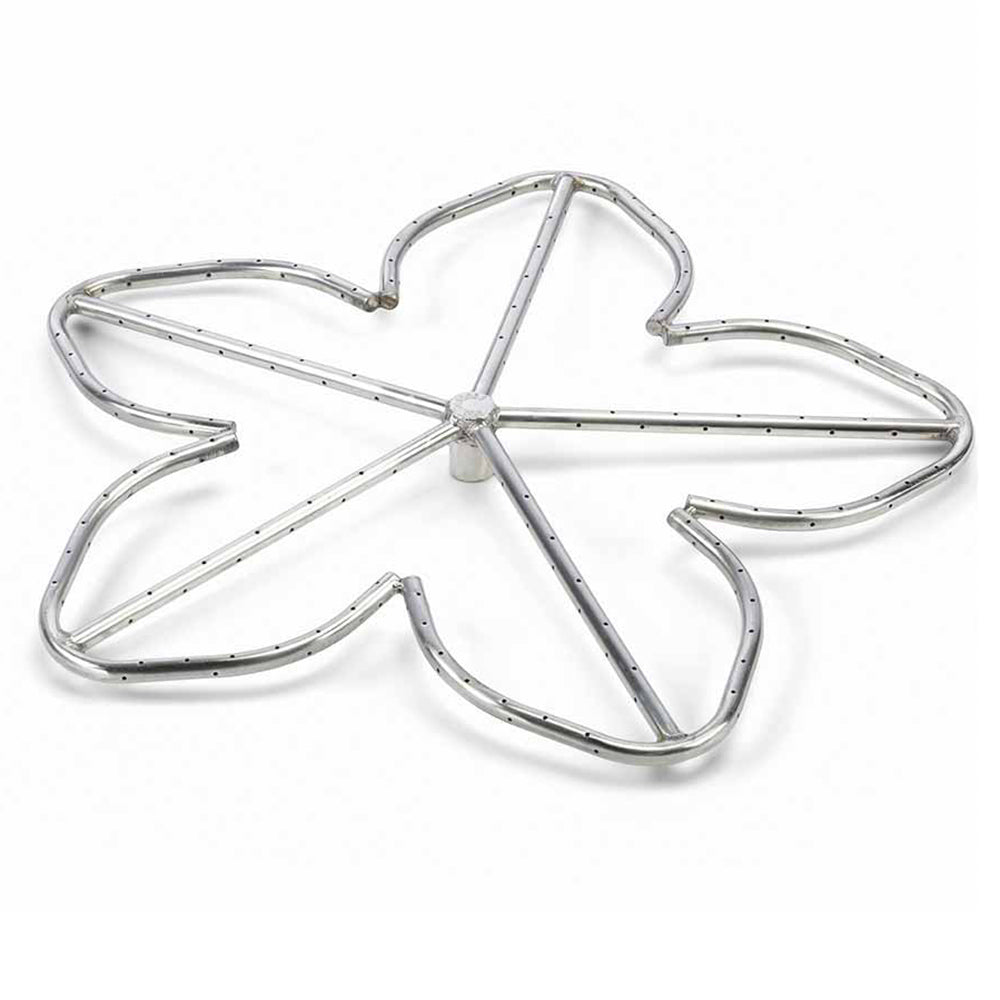

  • Star-Shaped Burner Pattern - Unique five-leaf Penta design delivers impressive bonfire-style flames for round or square fire pits
  • Stainless Steel Construction - Heavy duty 304 stainless steel resists corrosion for long-lasting outdoor performance
  • Water-Resistant Design - Raised center hub and integrated weep holes help protect the gas line from moisture
  • High BTU Output - Available in multiple sizes with BTU ratings from 65,000 to 400,000 for natural gas or propane

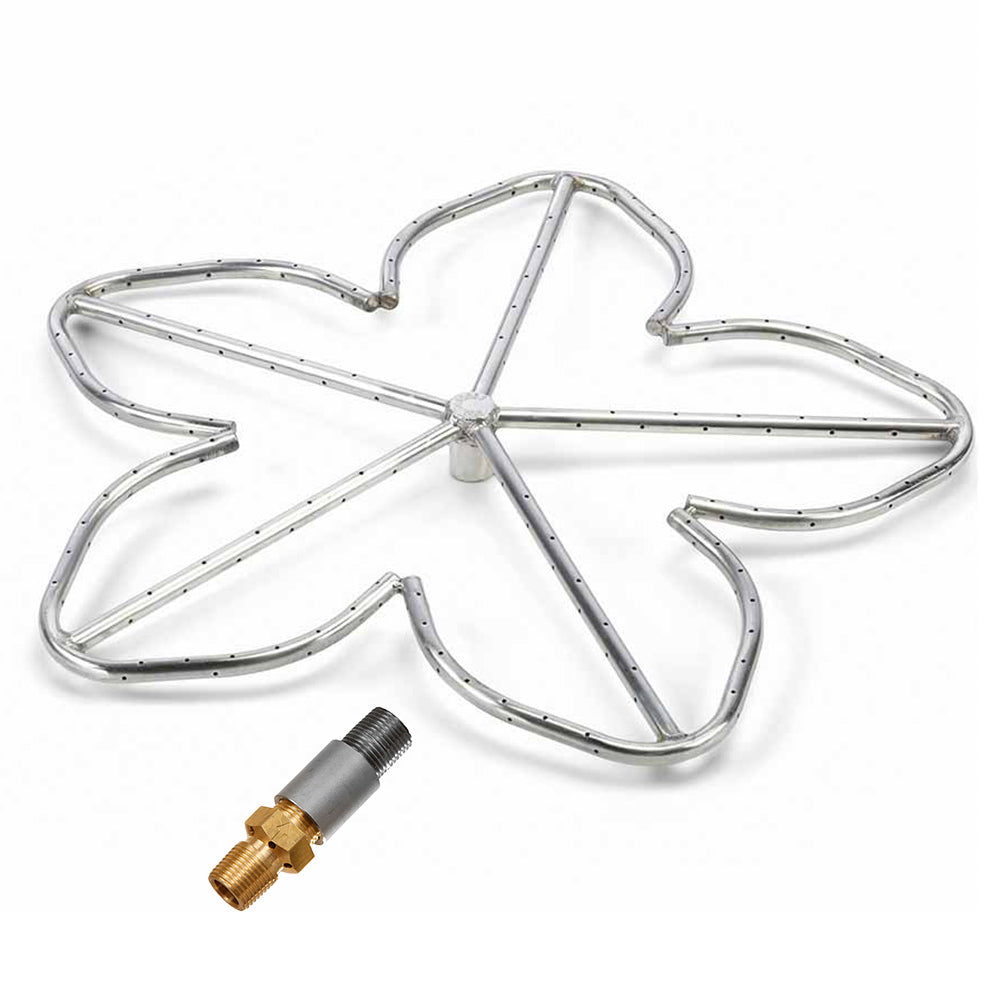

  • Includes - Burner only; propane models include a conversion kit. For a complete setup, see our full kits
    • Product Description

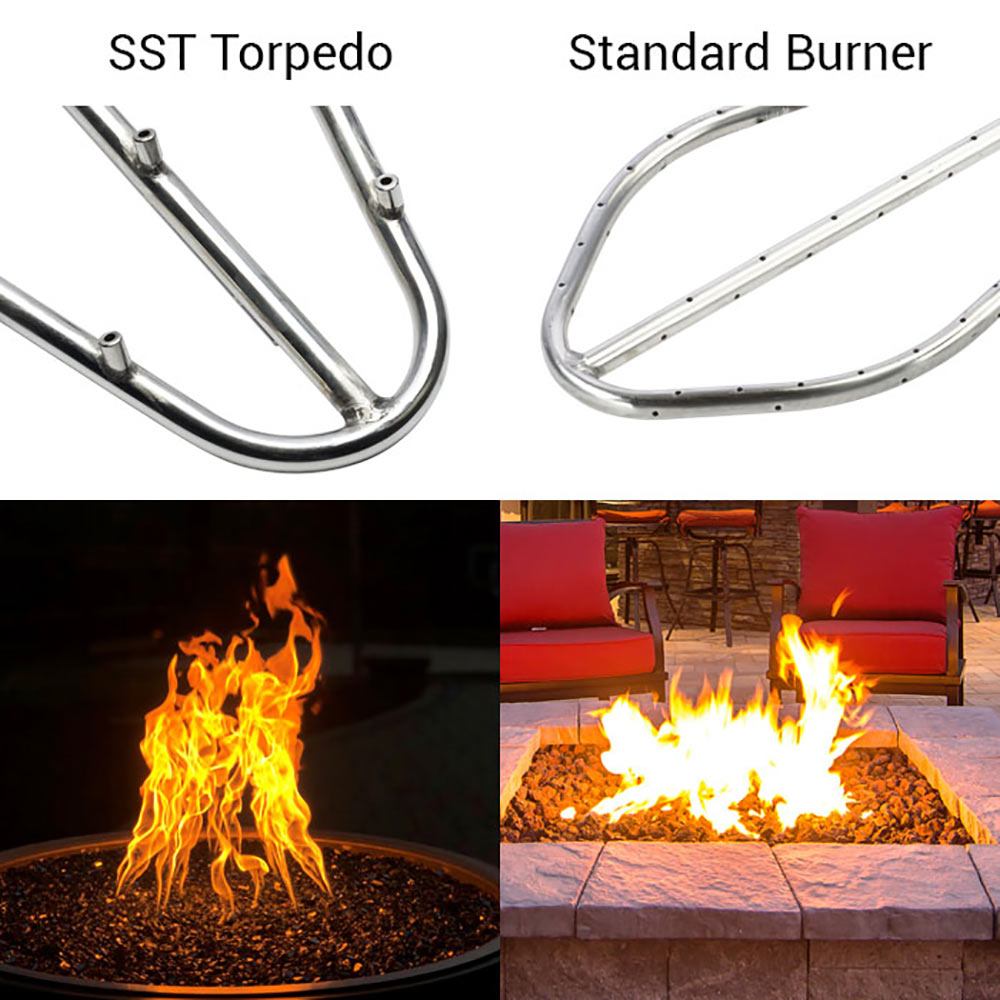

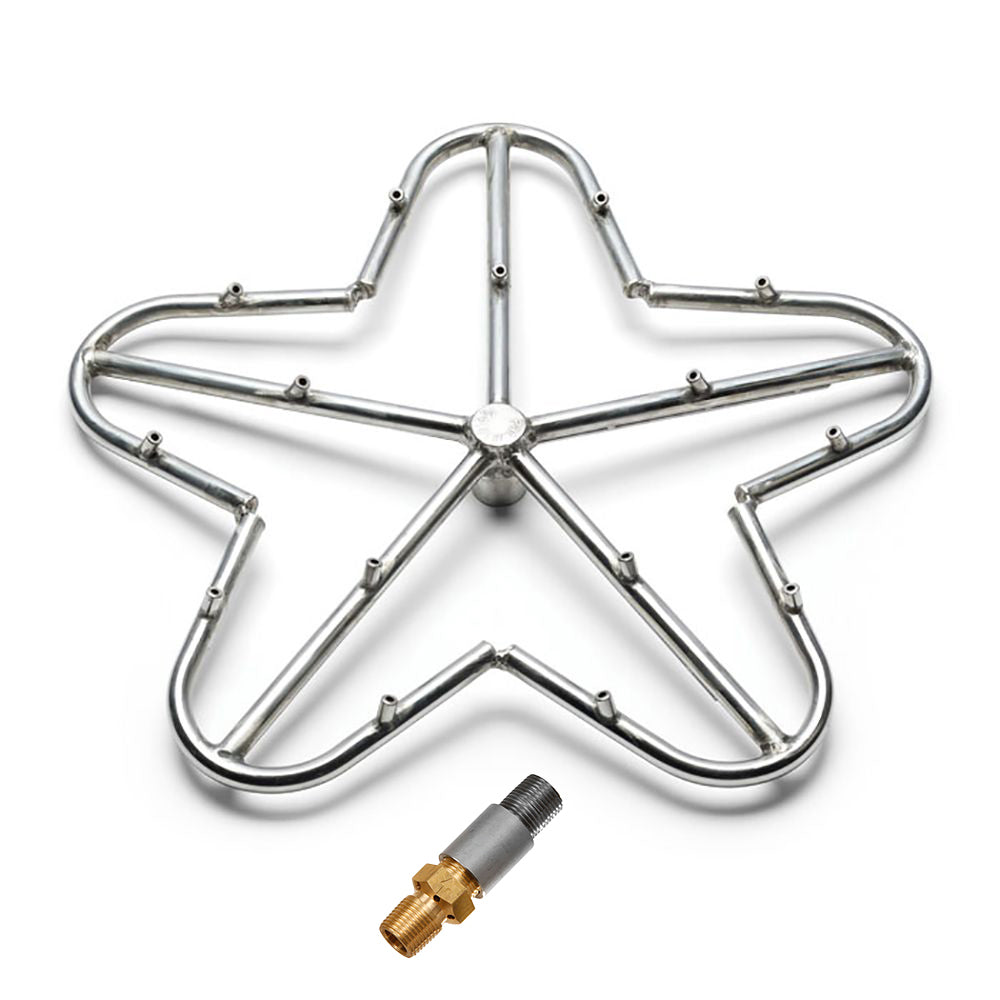

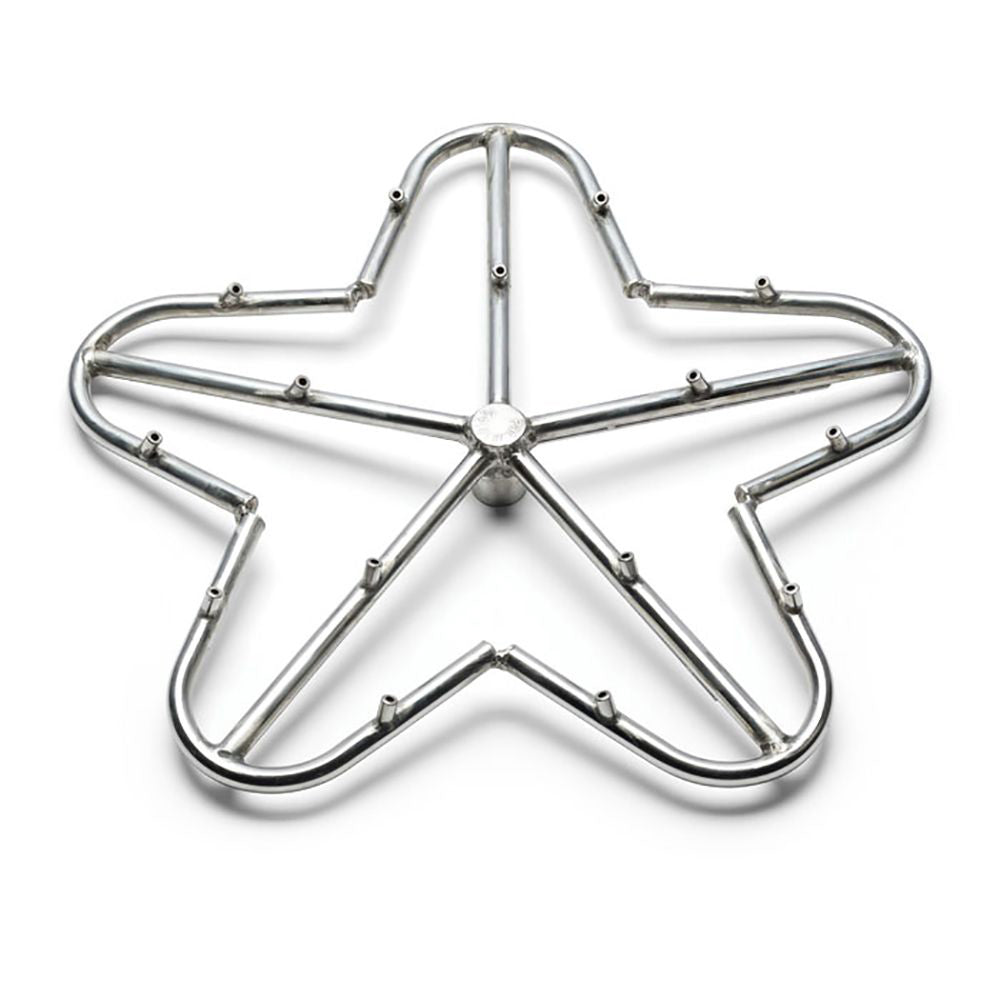

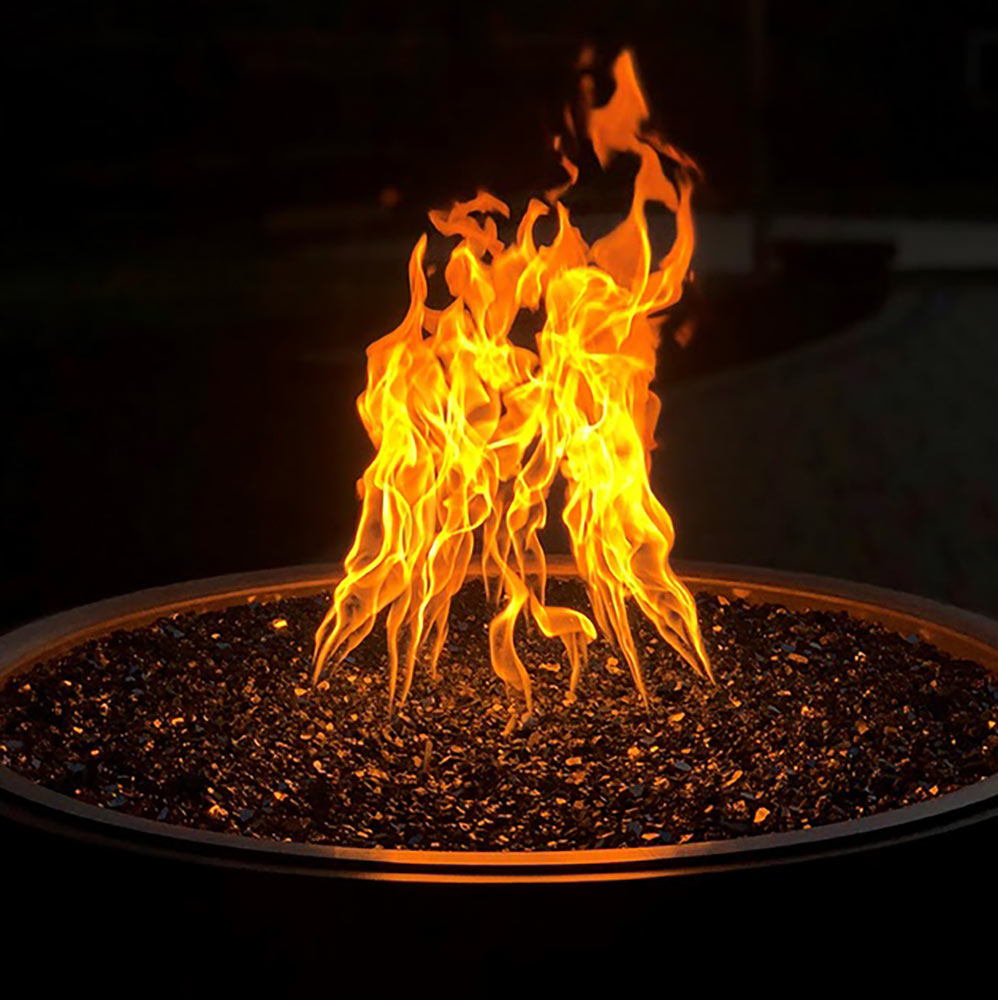

    The HPC Fire Penta Stainless Steel Fire Pit Burners provides a premium outdoor gas fire pit burner, delivering bold flames for either natural gas or propane. Crafted from 304 stainless steel, this star-shaped burner is built to withstand the elements and great for both round and square fire pits. Unlike standard round burners, the Penta fire pit burner features a five-spoke design that gathers in the center for a realistic bonfire flame effect. A raised center hub helps prevent water from entering the gas line, while weep holes improve drainage and weather resistance. The burner also includes reinforced leafs for added strength and durability. Available in multiple sizes, the burner is rated for high BTU outputs ranging from 65,000 to 400,000. Choose between traditional drilled ports for a fuller flame, or Torpedo nozzles for taller, more dramatic flames. Models 24 inches and under include a 1/2-inch female hub, while 30-inch and larger have a 3/4-inch hub. Every HPC Penta burner is backed by a lifetime warranty.
    Choose Product Options To See Full Specifications
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety

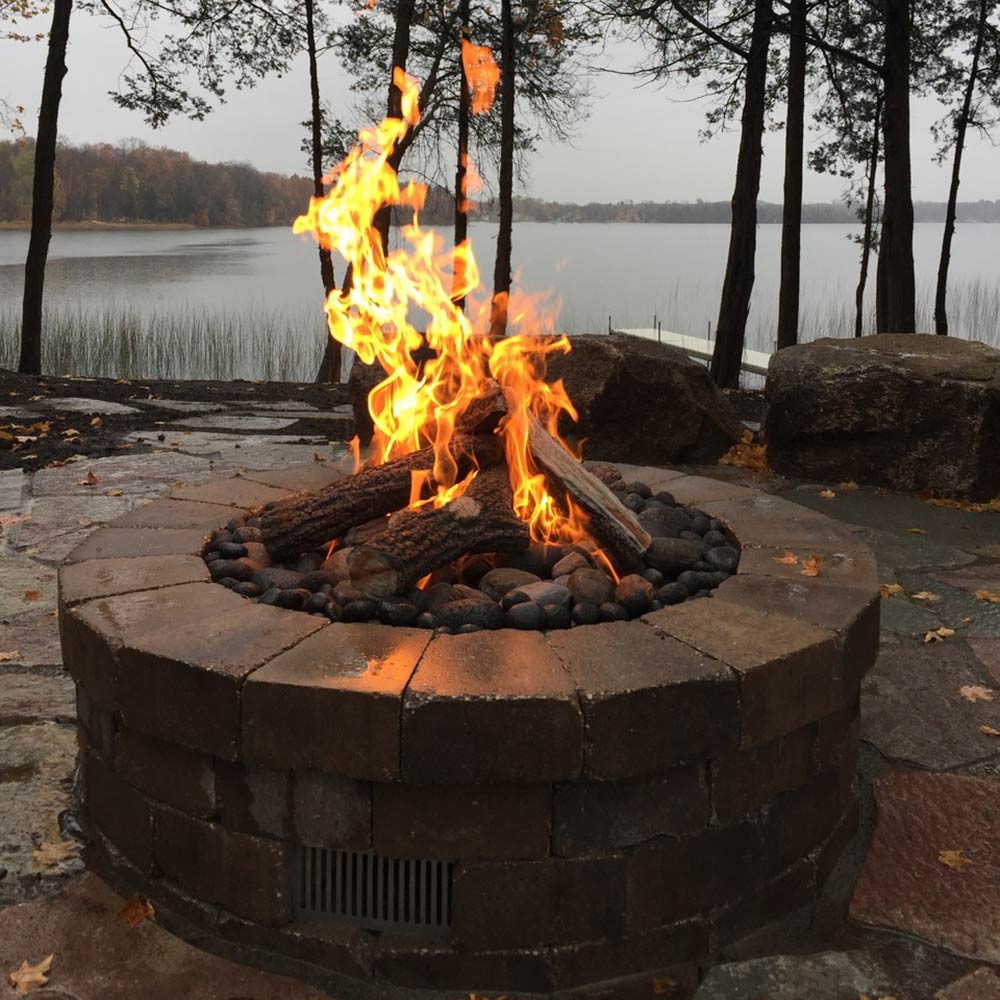

    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
