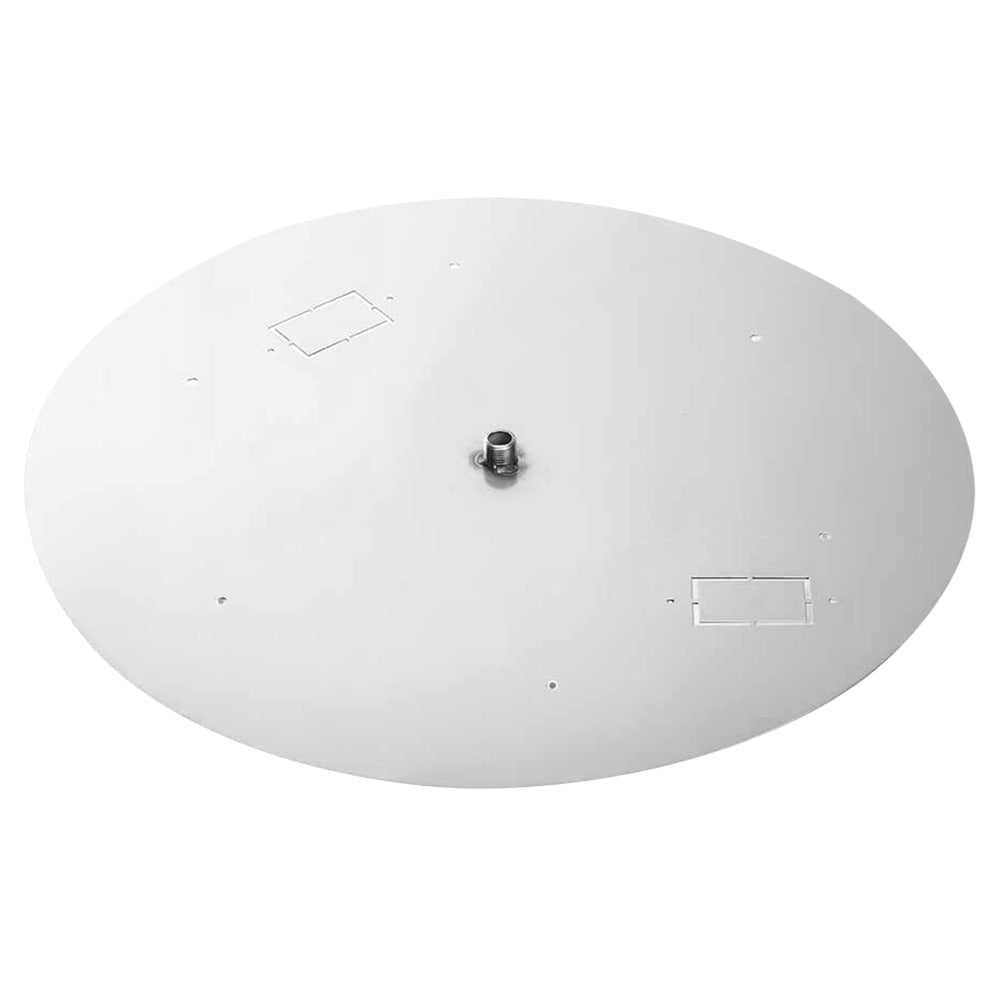

HPC Fire Stainless Steel Round Flat Fire Pit Burner Plate
  • HPC Fire Stainless Steel Round Flat Fire Pit Burner Plate
  • HPC Fire Stainless Steel Round Flat Fire Pit Burner Plate
HPC Fire Stainless Steel Round Flat Fire Pit Burner Plate

HPC Fire
Starting at $164.07

HPC Fire Stainless Steel Round Flat Fire Pit Burner Plate
SKU: 571-RND-Config
Free Shipping!
Today or Next Business Day

Price:
Starting at $164.07
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features
  • Heavy Duty Construction - Complete 304 stainless steel construction ensures a long lasting and durable product
  • Flat Style Pan - Round flat pan designed for simple installation into fire pit enclosure
  • Weep Holes - Drilled holes in the burner pan allow proper water drainage
  • Welded Nipple Assembly - Threaded nipple mounts to the center of the pan to connect the gas supply
    • Product Description

    The HPC Fire Stainless Steel Round Flat Fire Pit Burner Plate provides a high quality fire pit pan to help complete the installation of your gas fire pit project. The round flat pan is made of high quality 304 stainless steel while the design of the pan provides space for your fire media and drops right into an opening with support underneath. The diameter of the pans are noted inches while the welded nipple in the center of the pan offers a secure mount for the fire ring and the gas source, as well as weep holes for drainage.

    Gas fire pit pans are a crucial component to maintain the safety and quality of your fire pit. Burner pans help support your burner ring, separate the air mixer from fire media (for LP applications), and save money by reducing the amount of fire media you would otherwise need to complete your fire pit. Pans also help to minimize fuel settling below the pan, and help your fire pit drain properly, failure to do so may result in personal injury or explosion.

    Choose Product Options To See Full Specifications
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
