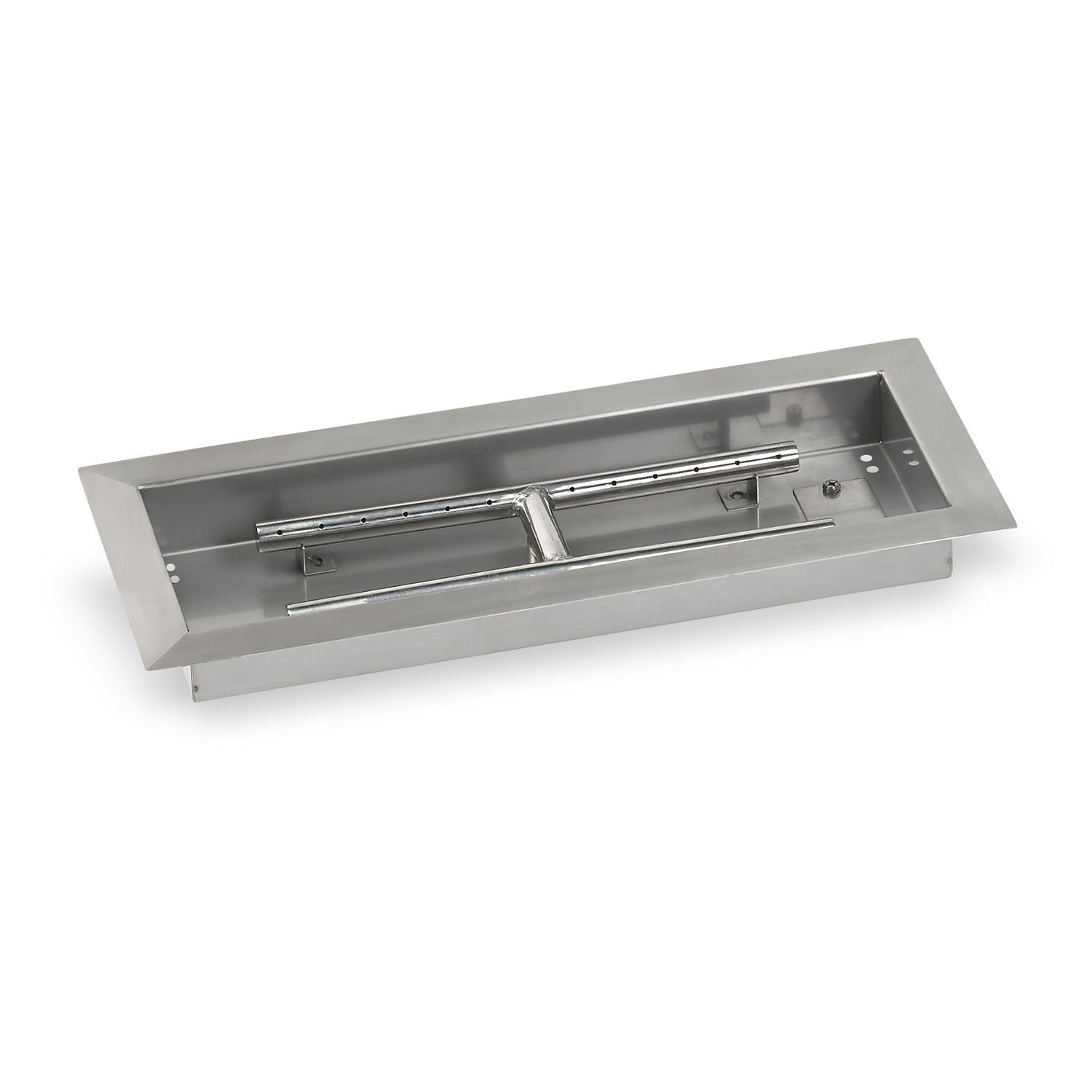

American Fire Glass Drop-In Fire Pit Burner Pan, Rectangular Bowl - Burner Included
  • American Fire Glass Drop-In Fire Pit Burner Pan, Rectangular Bowl - Burner Included
American Fire Glass Drop-In Fire Pit Burner Pan, Rectangular Bowl - Burner Included

American Fire Glass
Starting at $229.49

American Fire Glass Drop-In Fire Pit Burner Pan, Rectangular Bowl - Burner Included
SKU: SS-AFPP-Config
Free Shipping!
Today or Next Business Day

Price:
Starting at $229.49
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features
  • High Output Burner - High BTU ratings from the stainless steel burners ensure a beautiful flame
  • Weep Holes - Pre-cut holes help pan drainage, helping to increase the longevity of your burner and burner pan
  • Stainless Steel Construction - Durable #304 stainless steel guarantees a quality product
  • Central Burner Hub - 1/2" cutout allows burner to easily connect to gas source
  • Burner Included - H Shaped burner included
    • Product Description
    The American Fire Glass Drop-In Fire Pit Burner Pan, Rectangular Bowl - Burner Included is an ideal choice for any outdoor fire pit project. Constructed from high quality stainless steel, these burners and burner pans are sure to provide durability and longevity. The burners feature drilled burner ports to reduce any whistling noise and ensure a quality flame. While the pan itself will feature weep holes to assist with water drainage and reduce the risk of burner or system damage, and also includes a cut central hole that allows the burner to connect to the gas source. These bowl pans measure 2" deep, with a 1-1/4" lip around the top to easily drop into your custom fire pit enclosure.
    Choose Product Options To See Full Specifications
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
    Product Resources

    American Fire Glass

    Since 2004, American Fire Glass has produced high-end fire pit and patio items in California. Their products are popular among hotels, restaurants, casinos, and residential backyards. The company has grown to employ over 30 people in a 20,000-square-foot facility and has been recognized by INC as one of the fastest-growing companies. They offer limited lifetime warranties for their stainless steel items and have a diverse selection of fire pit glass media, outdoor fire pits, fire pit tables, and fireplaces.
