Fire by Design SCG-FS Field Serviceable Standard Capacity AWEIS Electronic Gas Fire Pit Ignition System

SKU: SCG-FS-Config

Fuel Type:Propane Natural Gas Propane

Ignition

Size

Free Shipping!

Usually Ships in 3-4 Business Days

Price:

$2,168.46

view full details

Optional Accessories:

Product Features

Commercial Grade Ignition System - Engineered for reliable performance in demanding outdoor fire pit applications

Safety Certified - Hot surface igniter with flame-sensing shutoff ensures safe operation in all conditions

High BTU Capacity - Rated for 290,000 BTUs with natural gas or propane

Flexible Control Integration - Incorporate into a switch, timer, remote, or pool/home automation system

Voltage Options - Choose 120VAC (plug-and-play), 24VAC (hardwire with included transformer), or 30VDC swimming pool certified (power supply sold separately)

Product Description

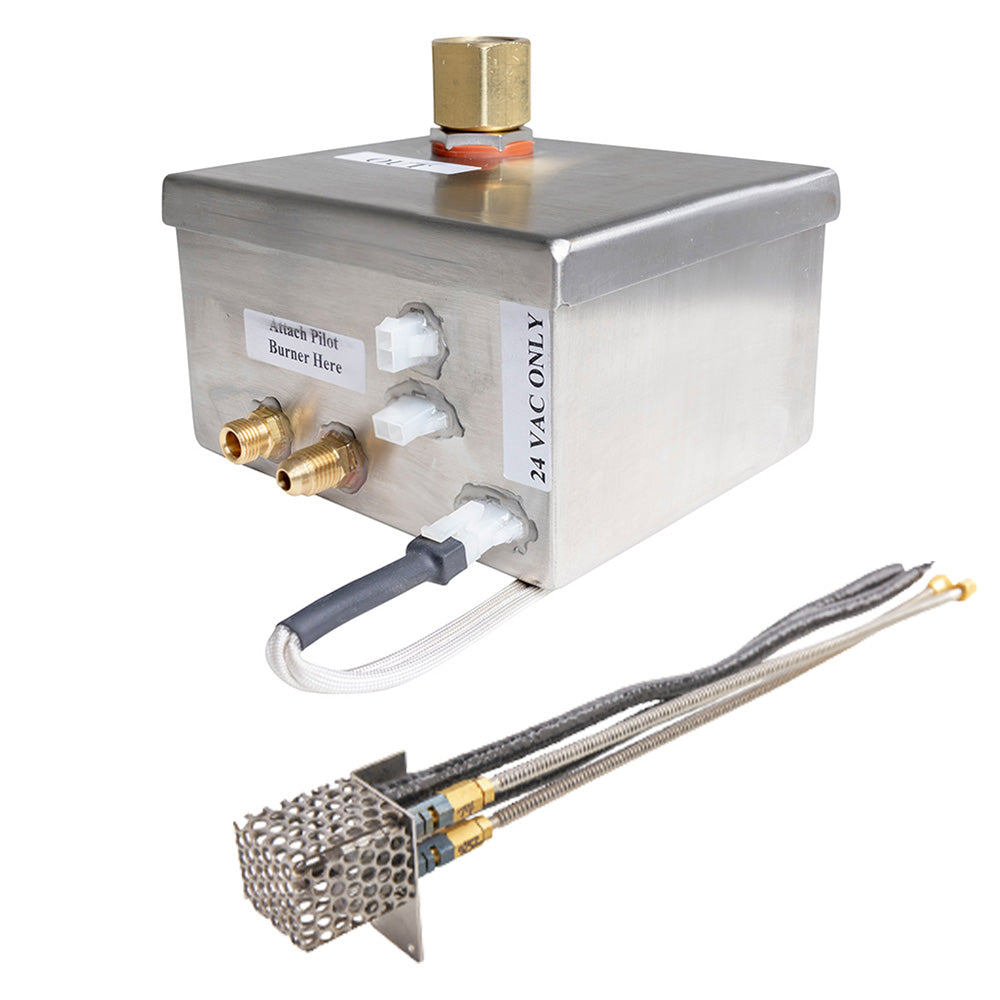

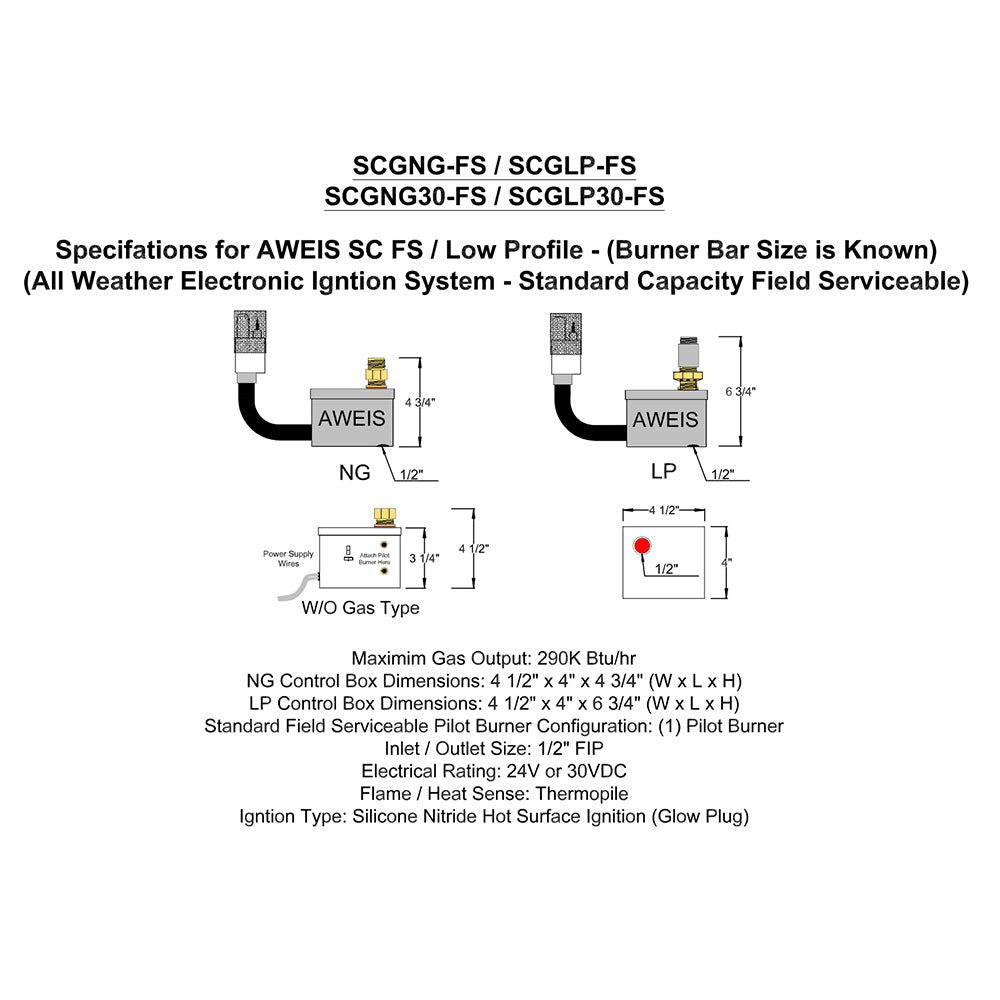

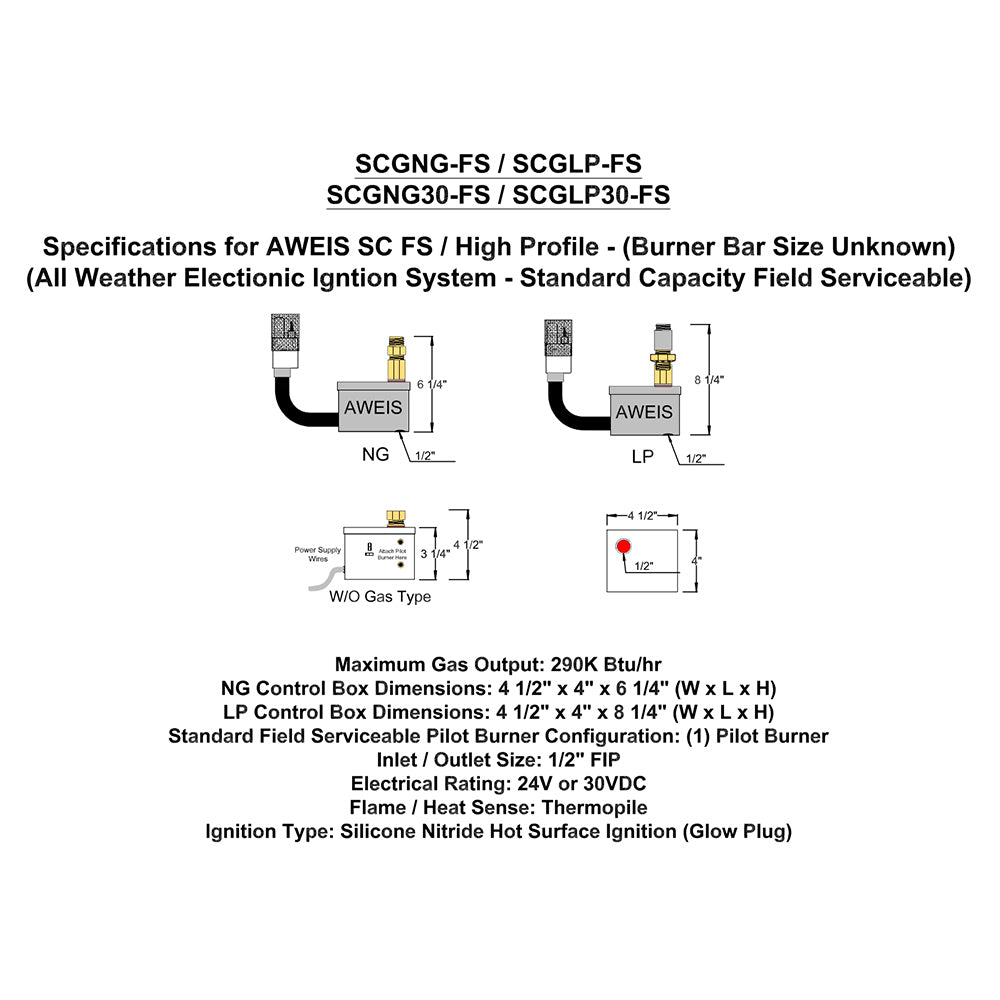

The Fire by Design SCG-FS Field Serviceable Standard Capacity AWEIS Electronic Gas Fire Pit Ignition System is a premium, weather-resistant system for automated outdoor gas fire pit ignition in both residential and commercial settings. This electronic gas fire pit ignition system uses a hot surface igniter to light the pilot flame, while a flame-sensing thermocouple monitors for ignition and safely shuts off gas flow if the flame is lost - ensuring reliable, automated performance and safety. Fire by Design's patented AWEIS ignition system operates automatically when power is applied, making it easy to control with a switch, timer, remote, or home automation system (controls not included). Choose from natural gas or propane and multiple power options: 120VAC (plug-and-play), 24VAC (hardwire with included transformer), or 30VDC swimming pool certified (power supply sold separately). Compact and durable, the 316 stainless steel valve box measures 4.375" x 4.375" and features 1/2-inch FPT connections. Each unit includes a commercial-grade pilot, ignition module, heat deflector shield, and installation instructions for easy setup. Note: 12 gauge wire required for all hardwired installations.

⚠️ WARNING: This product can expose you to chemicals including LEAD AND LEAD COMPOUNDS, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/.

Choose Product Options To See Full Specifications

Product Resources

Fire By Design

Discover the outdoor fire pit experience of your dreams with Fire By Design. In 2005, founder Bob Roman’s dissatisfaction with existing designs led him to partner with a local engineering firm to create the incredible All Weather Electronic Ignition Systems (AWEIS). These systems form the backbone of Fire By Design’s impressive range of custom fire pit and fireplace products. Upgrade your heating system with Fire By Design today.

Shop All Fire by Design
