HPC Fire Linear MLFPK Match Light Gas Fire Pit Kit with Rectangular Interlink Pan
  • HPC Fire Linear MLFPK Match Light Gas Fire Pit Kit with Rectangular Interlink Pan
  • HPC Fire Linear MLFPK Match Light Gas Fire Pit Kit with Rectangular Interlink Pan
HPC Fire Linear MLFPK Match Light Gas Fire Pit Kit with Rectangular Interlink Pan

HPC Fire
$570.99

HPC Fire Linear MLFPK Match Light Gas Fire Pit Kit with Rectangular Interlink Pan
SKU: LTBSS-MLFPK-L-FLEX-Config
Fuel Type:Propane Gas for Bulk Tank
Free Shipping!
Today or Next Business Day

Price:
$570.99
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features
  • Stainless Steel Construction - Heavy duty 304 stainless steel burner & pan ensure a long lasting product
  • Manual Ball Valve - Simple quarter turn ball valve controls gas flow
  • Match Lit - Ignites simply with a match or lighter held to the burner
  • T-Shaped Burner - Linear T shaped burner will offer a contemporary linear flame presence
  • CSA Certified - Ensuring the highest quality and safety for outdoor gas fire pits
    • Product Description

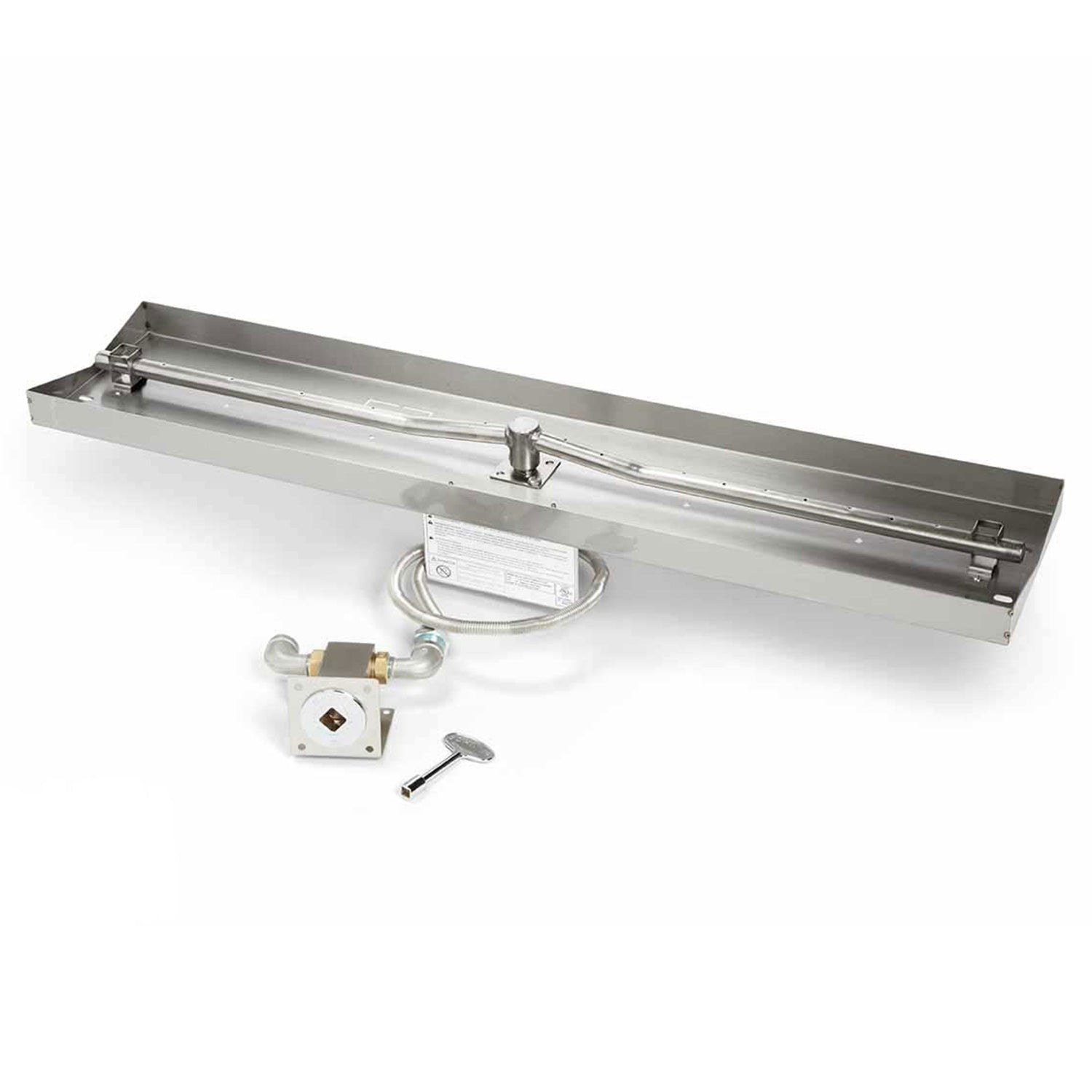

    The HPC Fire Linear MLFPK Match Light Gas Fire Pit Kit with Rectangular Interlink Pan combines high quality construction and reliability to complete your gas fire pit project. The manual ball valve allows simple & reliable control over the flow of the gas while ignition is achieved simply by taking a lighter or match to the burner as you slowly open the gas valve. The T shaped burner is constructed from premium 304 stainless steel; each burner features standard burner ports, a 1/2" female gas inlet, and is neatly machine welded to produce a seamless and durable product. Burners and pans are also backed by a Limited Lifetime Warranty from HPC.

    This burner kit is designed for both natural gas and propane applications, the burner will come assembled to the linear interlink pan. Also assembled will be the necessary fittings for the sealed control box attached with a flexible gas line; propane units will include a wire mesh spider guard to keep spiders from clogging the gas line.

    The Small Tank Kit is for use with MLFPK models that are rated at 90,000 BTU or fewer. The kit includes a 90° regulator, 48 inch flex hose, 24 inch flex line, L-bracket and fittings for each respective model.

    Choose Product Options To See Full Specifications
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
