HPC Fire Stainless Steel Fire Pit H Burner Pan - Burner Included

HPC Fire
Starting at $398.57

HPC Fire Stainless Steel Fire Pit H Burner Pan - Burner Included
SKU: H-Burner-Config
Fuel Type:Natural Gas
Free Shipping!
Today or Next Business Day

Price:
Starting at $398.57
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features

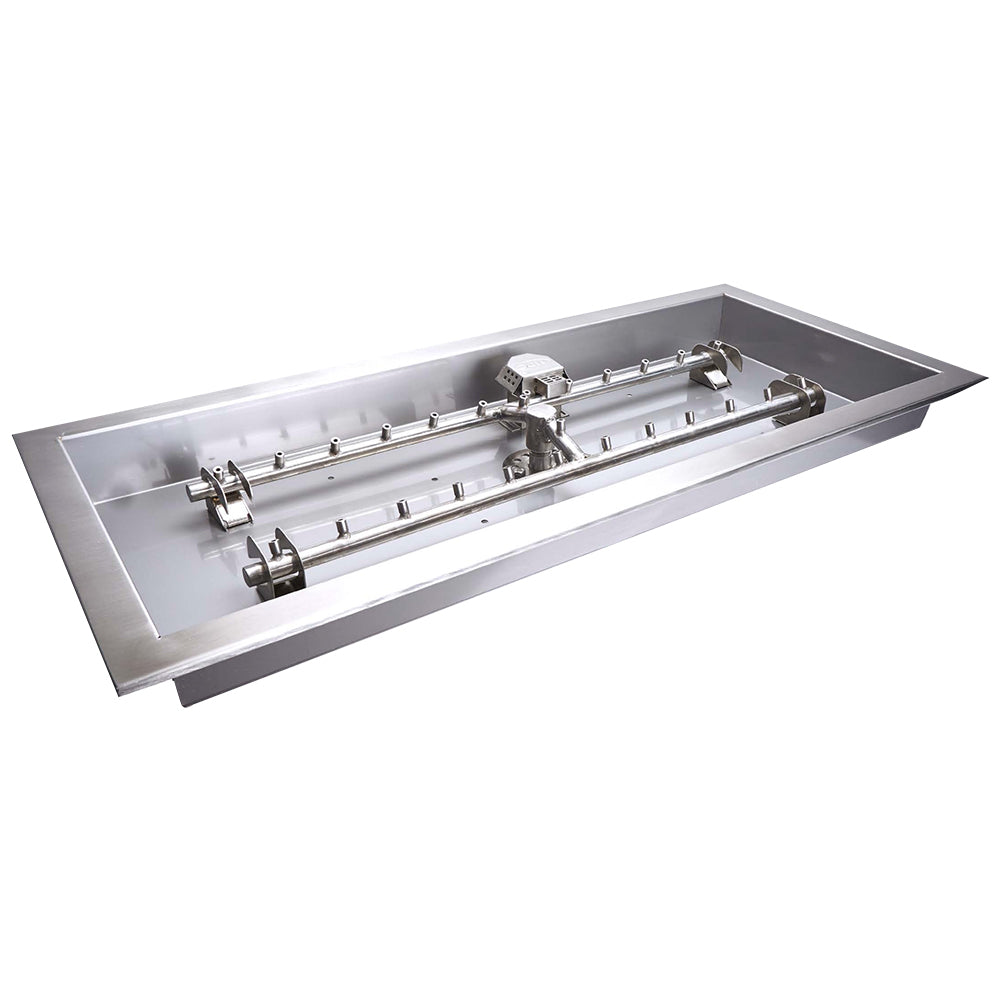

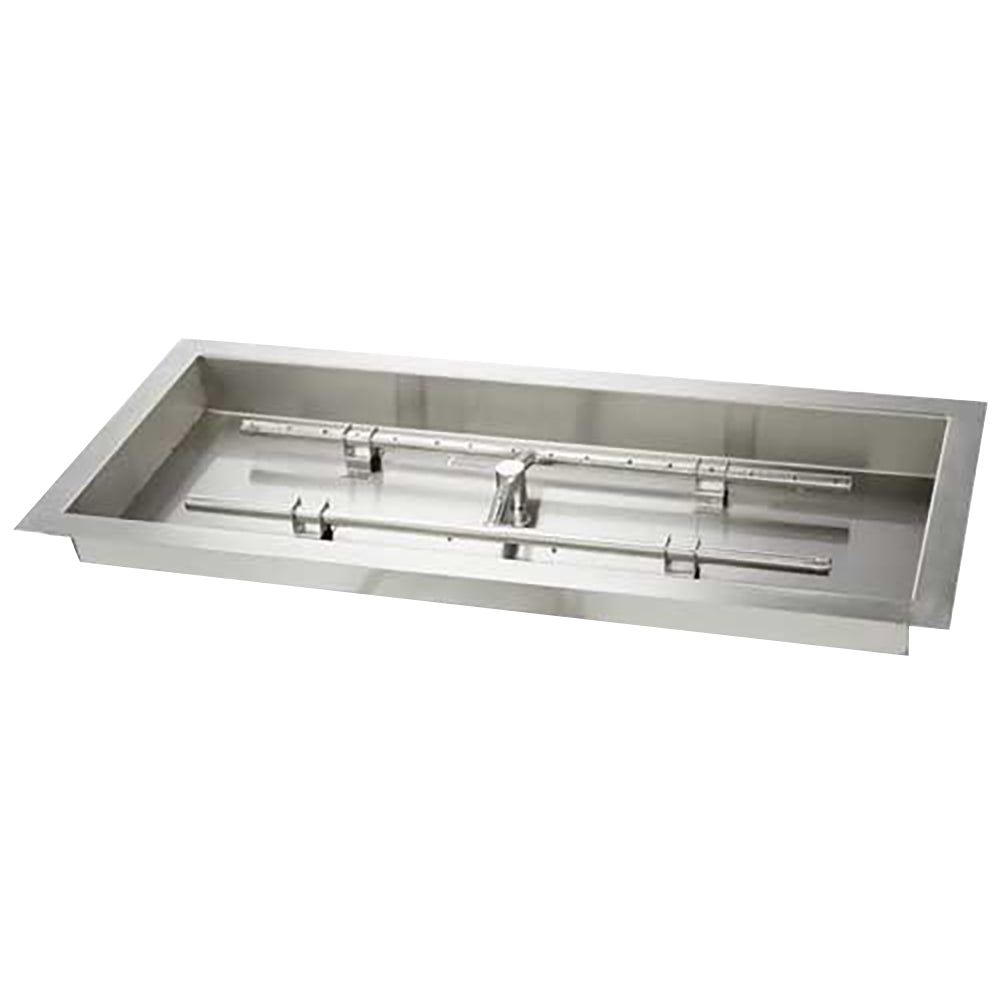

  • Heavy Duty Construction - 304 stainless steel drop-in rectangular pan with Torpedo H burner for tall, vibrant flames
  • Drop-In Design - Features a 1-3/8 inch rim and adds 2-3/4 inches to total dimensions for secure fit over pavers or enclosure
  • High BTU - Rated from 115,000 to 400,000 BTUs depending on burner size; includes 1/2" welded gas connection
  • Weather Resistant - Compatible with natural gas or propane; includes raised center hub and weep holes to shed water
  • Burner & Pan Only - Includes H burner, drop-in pan, and propane conversion kit (if selected); add SPTX-FLK1-2 for a complete match-light fire pit system
    • Product Description

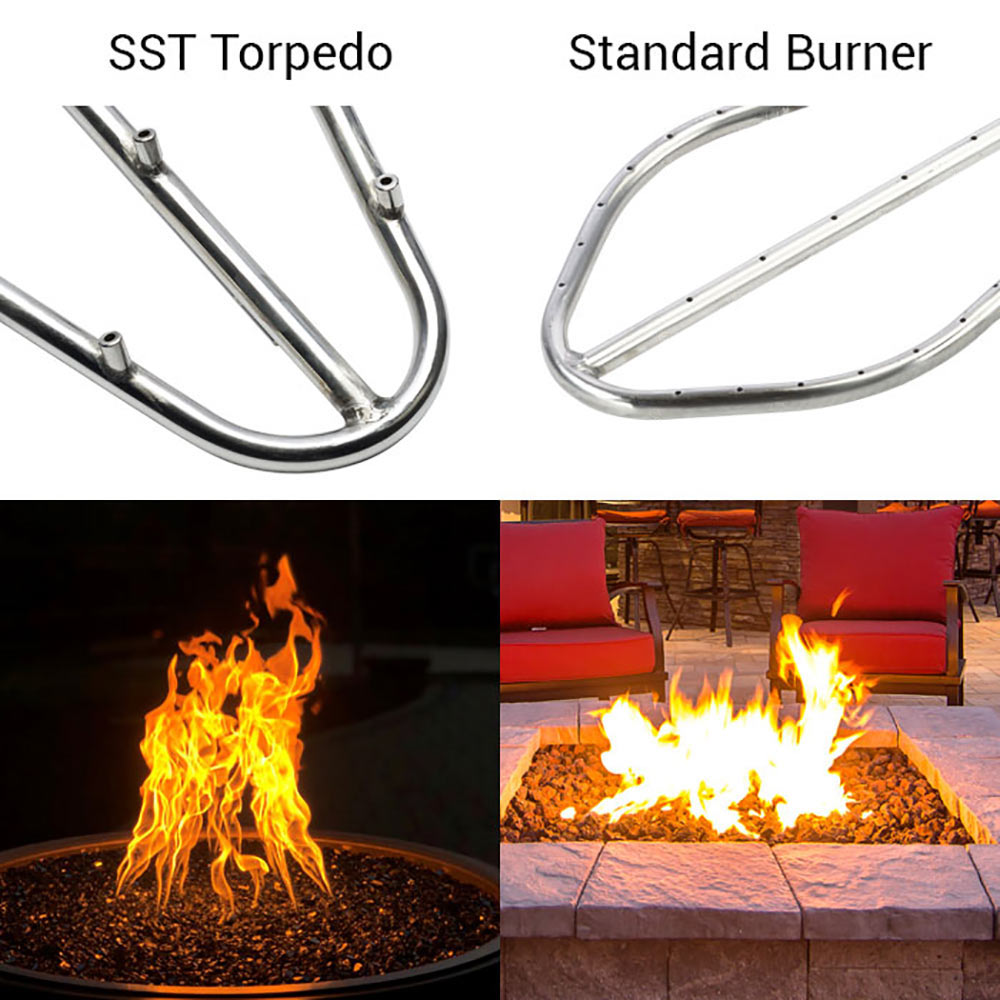

    The HPC Fire Stainless Steel Fire Pit H Burner Pan - Burner Included combines a durable gas fire pit burner and pan to complete the installation of your outdoor gas fire pit. Built from 304-grade 18-gauge stainless steel, this rectangular burner with drop-in pan is designed to withstand the elements while delivering strong, even flames - making it ideal for DIY and custom fire pit projects. The listed dimensions reflect the pan interior, while the 1-3/8 inch rim allows the tray to rest securely over paver stones or inside an enclosure, adding 2-3/4" to the total footprint. A raised center hub on the burner helps shed water, while integrated weep holes improve drainage for a more weather-resistant design. Compatible with natural gas or propane, this high-output burner delivers 115,000 to 400,000 BTUs and features Torpedo nozzles for tall, natural-looking flames. The 1/2 inch welded gas connection ensures a solid fit. Propane models include a conversion kit with air mixer; proper ventilation is required for installations. Burner and pan only - add part SPTX-FLK1-2 to build a complete match-light fire pit system.
    Choose Product Options To See Full Specifications
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
