HPC Fire Unassembled Penta FPK Push Button Spark Ignition Natural Gas Fire Pit Kit with Round Flat Pan
  • HPC Fire Unassembled Penta FPK Push Button Spark Ignition Natural Gas Fire Pit Kit with Round Flat Pan
  • HPC Fire Unassembled Penta FPK Push Button Spark Ignition Natural Gas Fire Pit Kit with Round Flat Pan
HPC Fire Unassembled Penta FPK Push Button Spark Ignition Natural Gas Fire Pit Kit with Round Flat Pan

HPC Fire
$680.49

HPC Fire Unassembled Penta FPK Push Button Spark Ignition Natural Gas Fire Pit Kit with Round Flat Pan
SKU: PENTA18-FPK-NG
Free Shipping!
Usually Ships in 2-3 Business Days

Price:
$680.49
view full details

Optional Accessories:
Description Specifications What to Consider Downloads
Product Features
  • Stainless Steel Construction - Heavy duty 304 stainless steel burner & pan, guards against rusting and ensures a long lasting product
  • Mounting Kit - Stainless steel faceplate (measures 6x3-inches) and push button kit mount for clean finish
  • Standard Burner Ports - Holes are drilled in a standard pattern on the tube for a broader, more natural - looking flame
  • Natural Gas Only - Burner kit should be specified for natural gas applications only

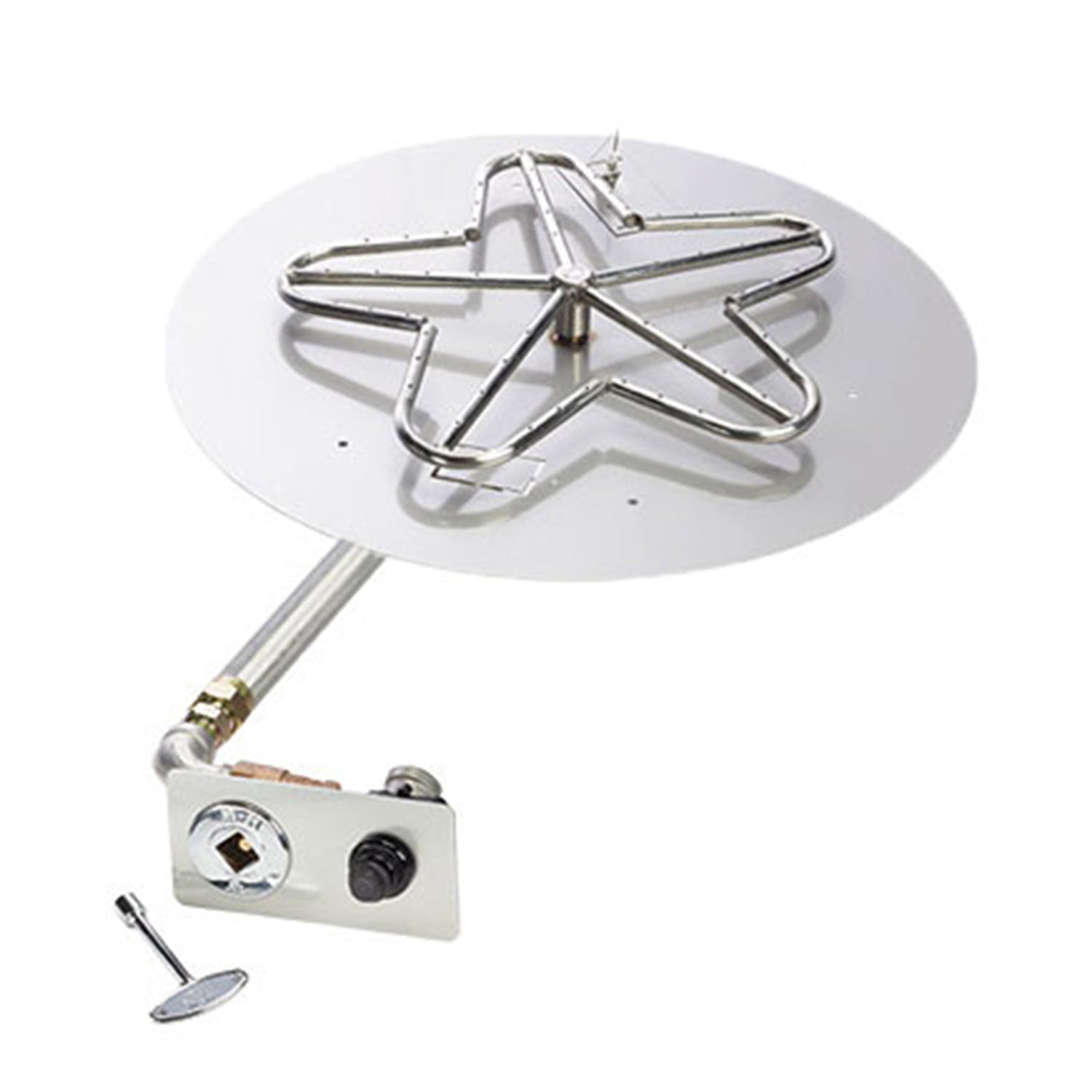

  • Complete Kit - Includes penta burner & flat pan, battery powered push button ignition system, polished chrome key valve, fittings, and a flex line
    • Product Description
    The HPC Fire Unassembled Penta FPK Push Button Spark Ignition Natural Gas Fire Pit Kit with Round Flat Pan combines high quality construction and convenience to complete your gas fire pit project. The battery powered spark ignition system gives effortless control over the fire pit with just the push of a button. The penta shaped burner is constructed from premium 304 stainless steel; each burner features standard burner ports, a 1/2" female gas inlet, and is neatly machine welded to produce a seamless and durable product. Burners and pans are also backed by a Limited Lifetime Warranty from HPC.
    Fuel Type Natural Gas
    Product Weight 16.0 lb
    BTUs 90000
    Burner Pan Size 18-Inches
    Burner Pan Type Flat
    Burner Shape Penta
    Burner Size 12-Inches
    Ignition Push Button Spark Ignition
    Material 304 Stainless Steel
    Product Depth 18.0 in.
    Product Height 1.0 in.
    Product Width 18.0 in.
    Shape Penta
    Style Contemporary
    What to Consider When Building a Gas Fire Pit

    What to Consider When Building a Gas Fire Pit:

    • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.
    • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
    • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation
    • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety
    • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
    • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws
























































































    • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
