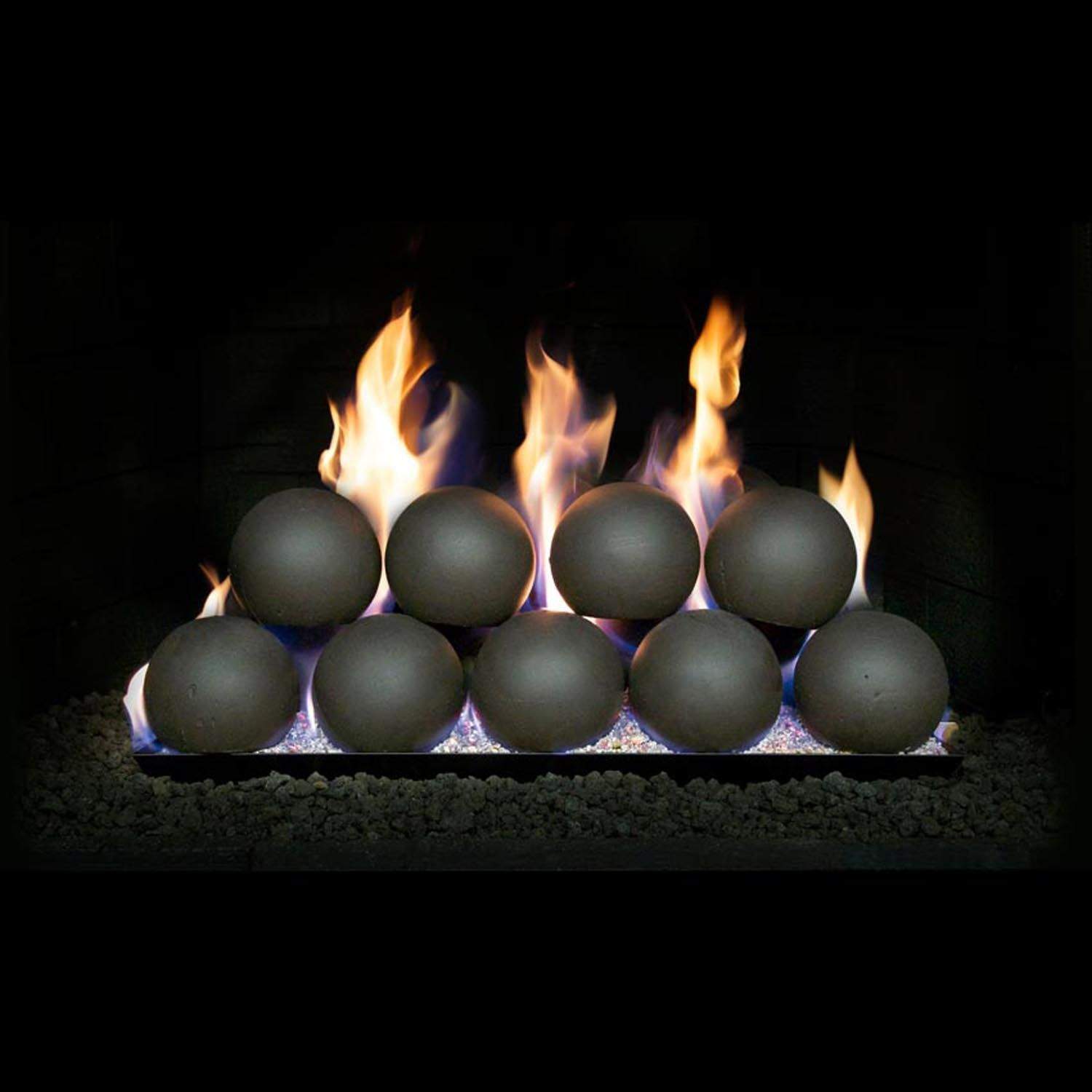

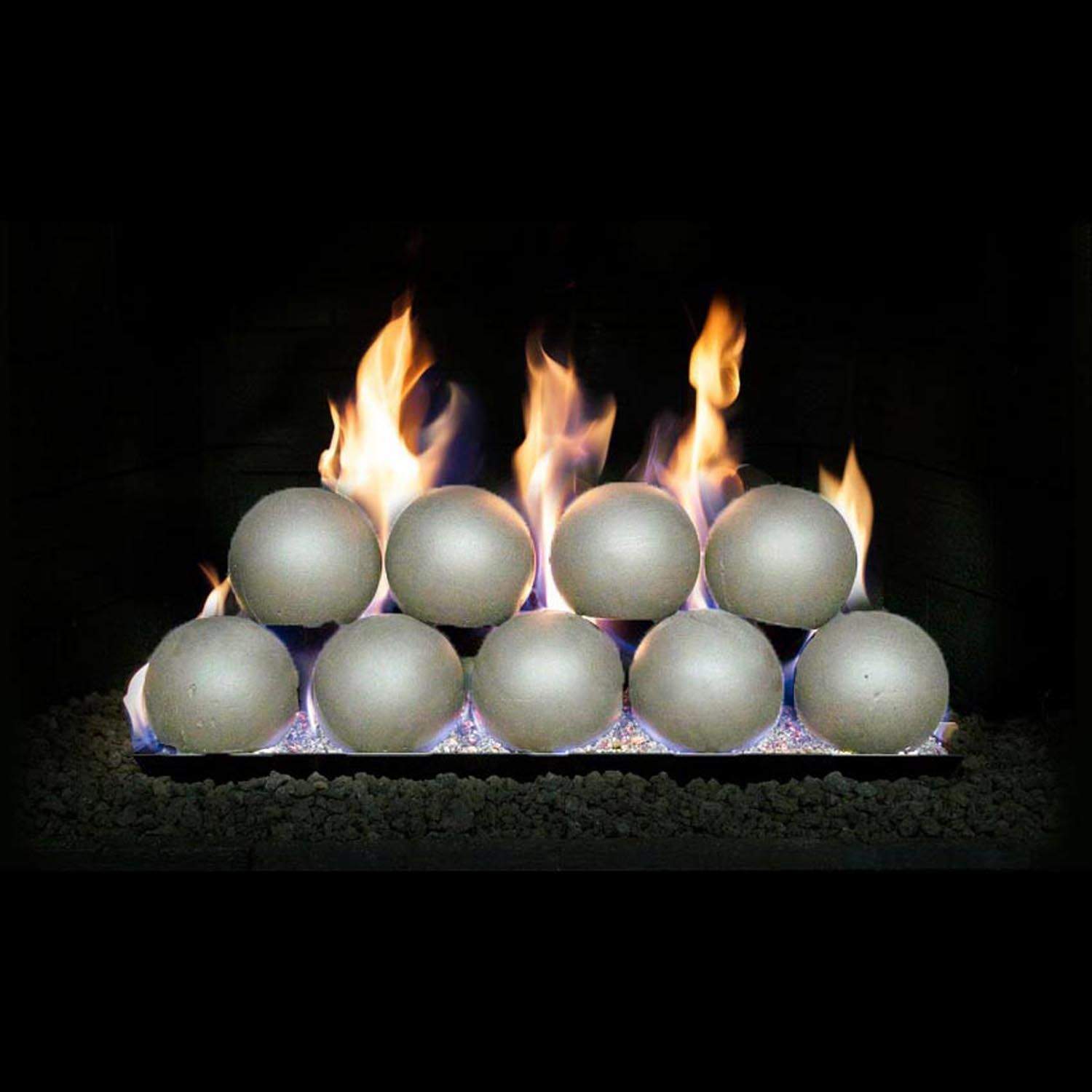

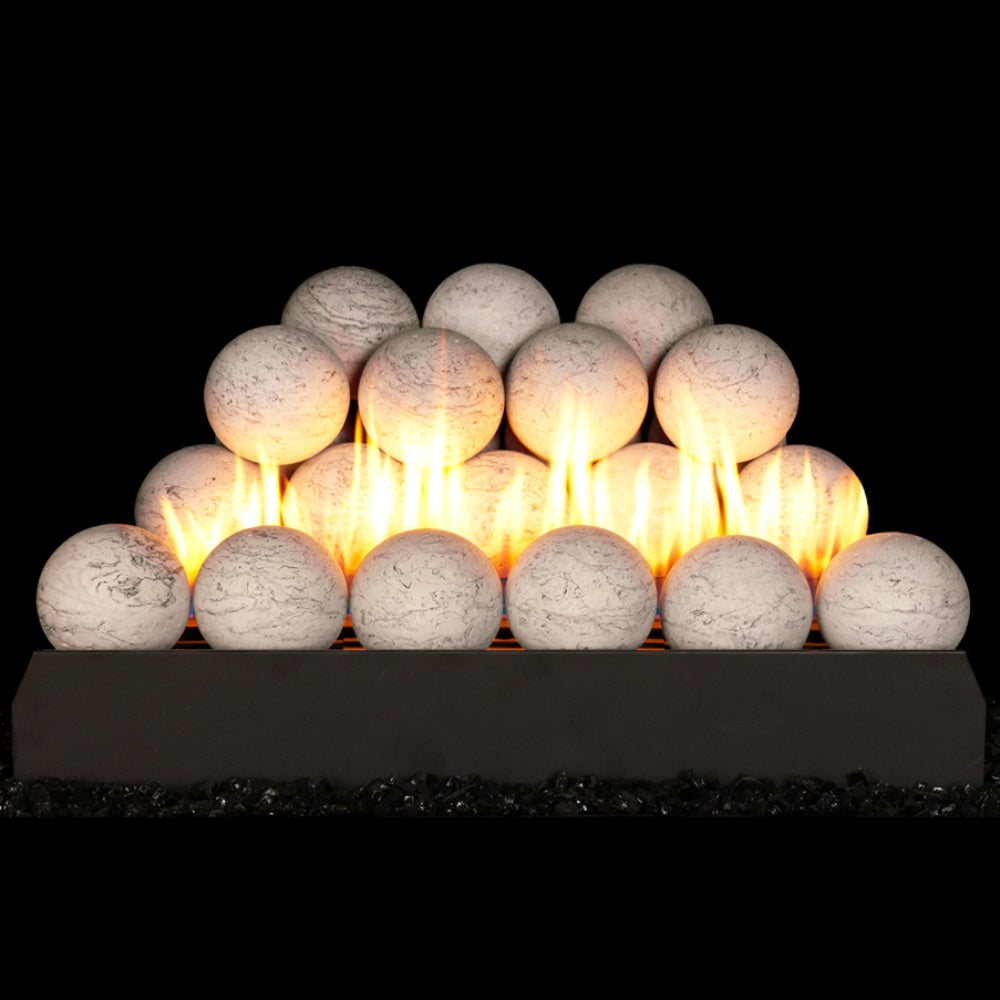

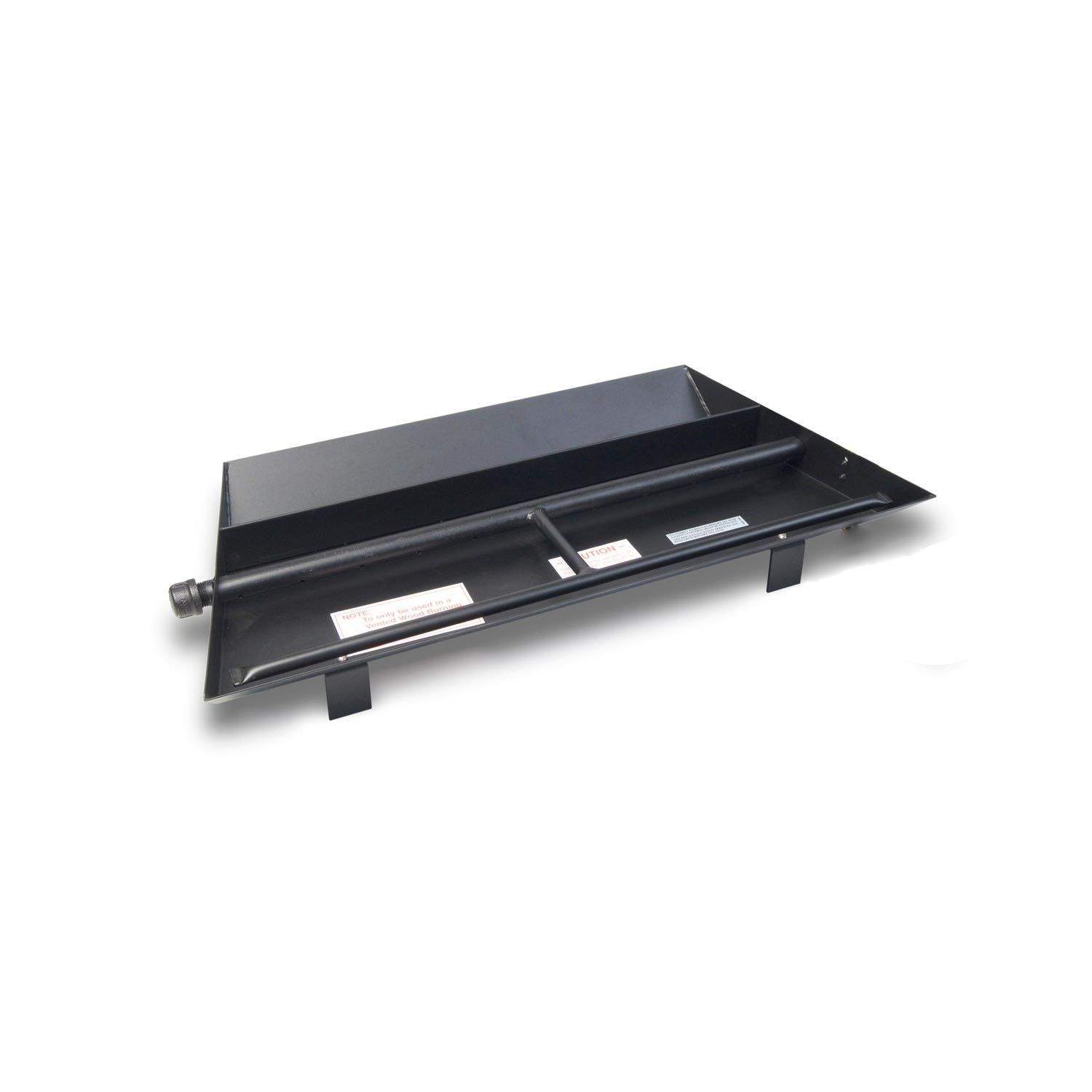

Real Fyre P45 Series Vented Glass Burner Kit, ANSI Certified, Fyre Spheres

Vented vs. Vent-Free

Vent type refers to how the fuel emissions are managed, your selection should be based on they type of firebox in your home and ensuring it meets your local codes.

Vented

• Most popular option for gas logs
• Gas logs must be used in a firebox with a working chimney flue
• Can be less efficient as a heat source because of the open chimney

Vent-Free

• Can be used in any approved firebox - with or without a flue
• Very efficient energy source as no heat is lost through the chimney
• Requires an oxygen depletion sensor to safely monitor gas emissions
• Some states do not allow vent-free units - check your local codes

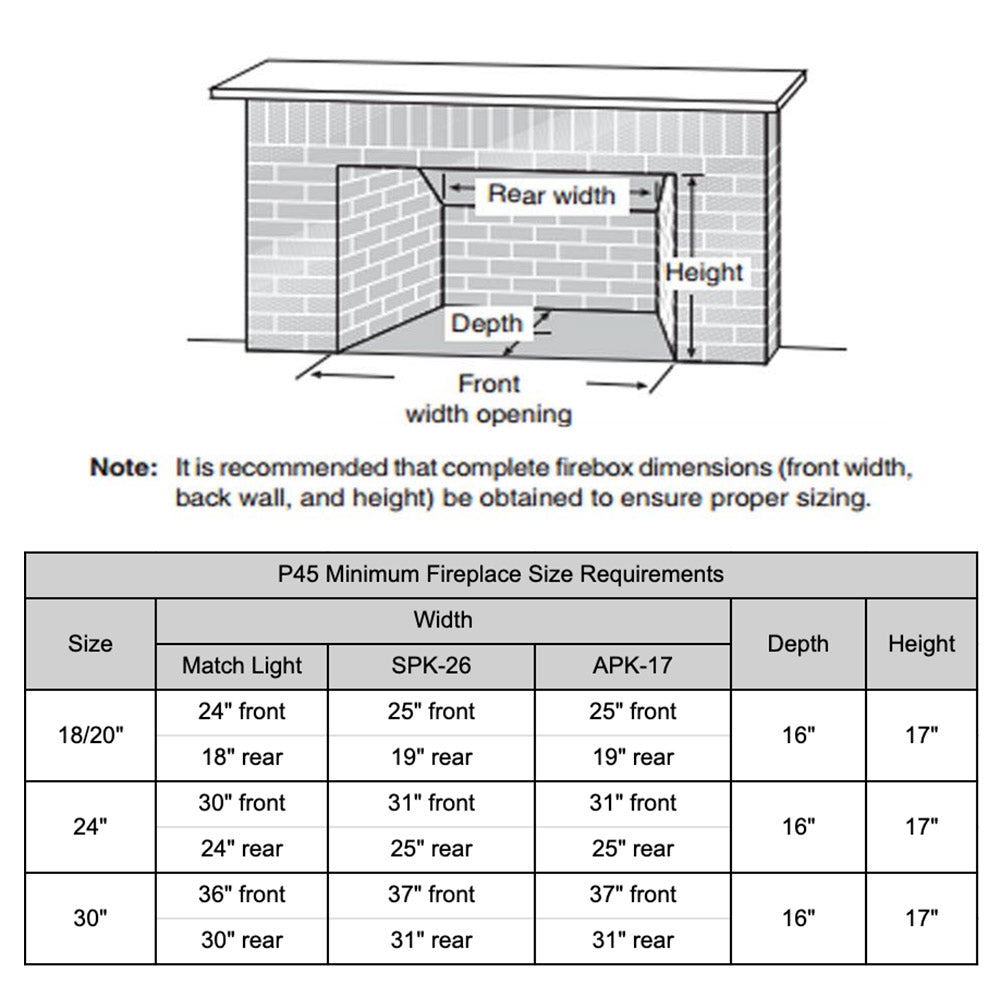

Choosing Gas Log Size

Know your fireplace dimensions - Measure front width, back width, the depth and the height of your firebox.

Before You Begin:

• Take clearances into account to avoid any overheating of combustibles
• Be sure to leave room on the sides for a valve/remote system if using them
• Gas log sets can range anywhere from 12 to 96 inches, but most common sizes range from 18 to 30 inches

Looking For a Custom Size?

• Many brands offer the ability to create custom logs/burners to fit any firebox
• Usually standard sized log sets will fit nearly any firebox but some fireboxes are unique

Outdoor vs. Indoor

Because of their ceramic construction, many log sets can be used indoors or outdoors - with the proper considerations.

Indoor Log Sets

• Can use black steel or stainless steel burners with confidence
• All safety pilot options are able to be used

Outdoor Log Sets

• Be sure to use a stainless steel burner to withstand the elements
• Safety pilot kits may not be an option if you can't protect them from weather
• Match light is the most reliable option

Gas Supply

For gas log sets, burners will be supplied from the same gas that supplies the rest of your home.

Natural Gas

• Most common gas type for gas logs
• Almost all homes in urban/suburban developments will have access to natural gas
• Natural gas does not sink, which helps avoid the build-up of gas on the fireplace floor

Propane

• More common for rural homes
• Often runs off of a large stand alone propane tank
• Propane is heavier than air and will settle on the fireplace floor - a reason why most manufacturers require the use of a safety pilot kit to help burn excess gas before it settles

Ignition and Controls

Ignition/controls refer to how the gas log set is started.

Match Light

• Most basic and inexpensive ignition method
• Manually open your gas valve and light the burner with a lighter or match
• Flame height can be easily adjusted
• Very reliable - all mechanical parts (nothing should ever break)

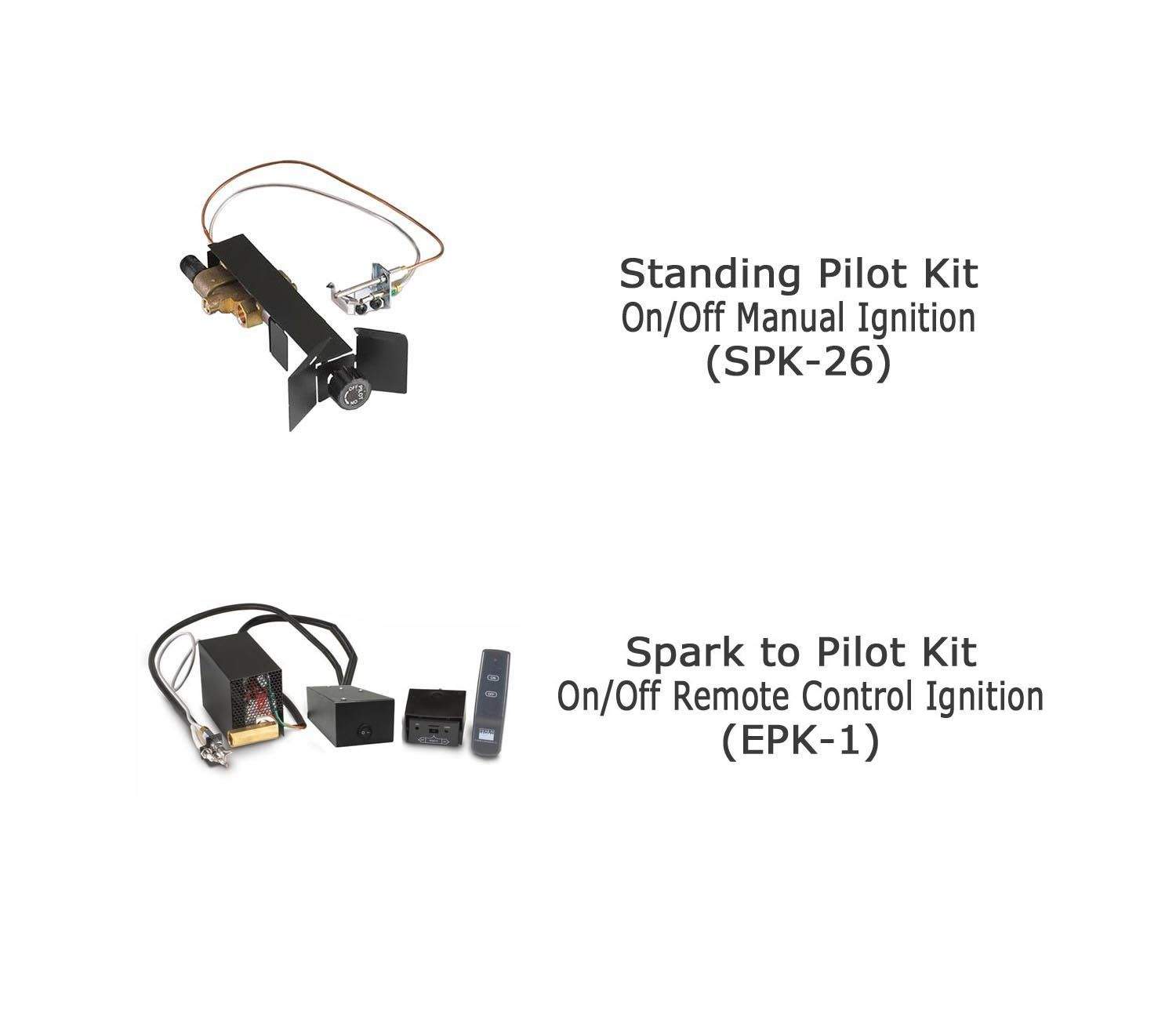

Manual Safety Pilot

• A pilot system allows convenient ignition by having an open flame source that ignites the main burner when the gas valve is opened
• Features a standing pilot (the pilot light will stay lit at all times)
• Often times can be paired with a remote, wall switch, or thermostat

Electronic Ignition

• Similar to a manual safety pilot but allows the pilot to be lit automatically
• The pilot can be standing or intermittent (shut-off between uses)
• More energy efficient by shutting off the pilot in between uses
• Can be paired with a remote control, wall switch, or thermostat

Log Set Profiles

There are two types of log styles - one-sided and two-sided

One Sided Gas Log Sets

• For installation in a traditional fireplace with only one viewing angle
• Most common log set option - the logs are designed with this profile in mind

Two-Sided Gas Log Sets

• Also referred to as "see through", "dual face", or even "peninsula" style log sets
• These logs are designed to have multiple viewing angles - either two sided or three sided in some cases
• Very contemporary option to join two rooms together with one fire feature
