SpotixPro Guide to Fire Feature Gas Pressure

Gas pressure problems can turn an otherwise straightforward fire feature installation into a frustrating callback. A burner may light normally during an initial test but struggle once other appliances start operating, or a high-BTU fire pit may never produce the flame the manufacturer intended.

For contractors, builders, and installers, the key is understanding that gas pressure is only one part of gas-system capacity. Pipe size, run length, fittings, regulator placement, meter or tank capacity, total connected BTU load, fuel type, and appliance requirements all affect whether a fire feature receives enough gas while it is operating.

Large outdoor fire features make proper system design especially important. A fire pit rated at 150,000, 200,000, or even 300,000+ BTU/hr can expose supply limitations that may never be noticeable with smaller household appliances.

Understanding Fire Feature Gas Pressure

Nearly all residential gas fire features eventually require relatively low gas pressure at the appliance. Unlike higher-pressure systems measured in pounds per square inch, or PSI, low-pressure gas systems are generally measured in inches of water column, or WC.

For reference, 1 PSI is approximately equal to 27.7 inches WC. That means even a seemingly small pressure difference can be significant at the appliance.

These are general ranges, not installation specifications. The manufacturer's product manual should always be the final reference for acceptable inlet pressure, manifold pressure, regulator requirements, and testing procedures.

Gas Pressure Terms Contractors Should Know

For systems using more than a simple manual key valve, it is common to see both an appliance inlet-pressure requirement and a separate manifold-pressure specification.

Generally, adequate pressure toward the upper portion of the appliance's approved inlet-pressure range can be beneficial for high-BTU equipment, but never exceed the manufacturer's maximum inlet pressure.

Use a Manometer to Check Gas Pressure

A manometer is one of the most useful diagnostic tools for a gas fire feature. Digital manometers can quickly measure low gas pressure and help determine whether the appliance is receiving the pressure specified by the manufacturer.

Always follow the manufacturer's testing procedure in the product manual when determining where and how inlet or manifold pressure should be measured.

Gas Pressure Does Not Equal Gas Capacity

A regulator can reduce or control pressure, but it cannot create additional gas-system capacity. The amount of gas available to an appliance still depends on several factors, including:

• Available gas supply
• Pipe diameter
• Pipe length
• Fittings and equivalent run length
• Regulator capacity
• Meter or propane-system capacity
• Total connected BTU load
• Fuel type
• Required operating pressure

This distinction becomes especially important on outdoor projects where a fire pit may be added alongside a grill, side burner, pizza oven, fireplace, pool heater, or other gas equipment.

Gas piping should be sized for the maximum simultaneous demand expected from the system rather than assuming every appliance will operate independently.

Dedicated Gas Lines for Large Fire Features

For large outdoor appliances, a dedicated gas line from the meter or main supply may be preferable to tapping into an existing interior manifold. Long runs and high-BTU loads can also benefit from carrying gas at an elevated pressure for most of the run and reducing it closer to the appliance.

This approach can substantially increase the amount of gas a given pipe size can carry compared with transporting low-pressure gas across the entire distance.

It is also important to remember that having multiple regulators in a system is not automatically a problem. An upstream line regulator and the appliance's own regulator may both be necessary to provide the pressure the equipment was designed to receive.

If your project requires a regulator, browse gas fire pit regulators available from Spotix. Always confirm fuel type, inlet pressure, outlet pressure, BTU capacity, and manufacturer requirements before selecting a regulator.

Natural Gas Pressure for Fire Features

Natural gas installations may use traditional low-pressure service or an elevated-pressure distribution system such as 2 PSI. The right configuration depends on the property's gas service, connected load, piping design, appliance requirements, and local code.

Traditional Low-Pressure Natural Gas

In a conventional low-pressure system, natural gas is reduced to a relatively low pressure before traveling through the property's distribution piping and on to the appliance.

This can work well when pipe sizing, distance, and total BTU demand are appropriate. Problems become more likely as runs get longer or appliance demand increases.

How a 2 PSI Natural Gas System Works

An elevated-pressure system allows more BTU capacity to move through a given pipe size than a comparable low-pressure system.

A typical 2 PSI configuration may look like this:

Gas service at approximately 2 PSI → distribution piping → line regulator → approximately 7 inches WC → appliance regulator or gas valve → burner

Depending on the appliance, the internal valve or regulator may reduce pressure further before gas reaches the burner. A common manifold pressure may be around 3.5 inches WC, but the actual requirement must always come from the appliance manufacturer.

Using higher-pressure distribution can be especially useful for:

• Long outdoor gas runs
• Remote fire pits
• Large outdoor kitchens
• High-BTU fire features
• Projects where low-pressure pipe sizing would otherwise become impractical

For example, moving the line regulator closer to the appliance can allow higher-pressure gas to travel through most of a long run before being stepped down near the fire feature.

However, this does not correct an undersized low-pressure section. The piping before and after every regulator still has to be properly sized for its pressure, length, and BTU load.

Check the Natural Gas Meter and Service Capacity

A properly sized outdoor gas line cannot compensate for a gas meter or utility service that cannot supply the total connected demand.

When a large fire feature is being added to an existing property, the calculation should account for the home's other gas equipment in addition to the new appliance.

If the existing low-pressure service cannot economically support a new high-BTU installation, the gas utility may sometimes be able to provide or convert the property to an elevated-pressure service such as 2 PSI. Any changes to gas service should be coordinated with the utility and a qualified gas professional.

Common Signs of an Undersized Natural Gas System

A classic symptom is a fire pit that appears to operate properly until another appliance starts.

For example, flame height may drop significantly when a furnace, water heater, grill, or another major gas appliance turns on. You may also see acceptable pressure when the burner is off but a significant pressure drop once the fire feature is operating.

Bulk Propane Gas Pressure for Fire Features

Bulk propane systems use permanently installed tanks, commonly in the 500- to 1,000-gallon range, to supply multiple appliances or high-BTU equipment such as large fire pits, fireplaces, and outdoor kitchens.

Propane leaves the storage tank at high and variable pressure. That pressure must be reduced through one or more regulator stages before the gas reaches the appliance.

Common Bulk Propane Regulator Configurations

Two-stage system: A first-stage regulator reduces tank pressure to an intermediate pressure, commonly around 10 PSI or less. A second-stage regulator then reduces pressure to approximately 10 to 14 inches WC for appliance delivery.

Integral twin-stage regulator: A single regulator assembly performs both stages of pressure reduction.

2 PSI distribution: Propane is distributed through part of the property at approximately 2 PSI. A line regulator closer to the appliance then reduces pressure to approximately 10 to 14 inches WC before the gas reaches equipment designed for low-pressure propane.

Just as with natural gas, distributing propane at elevated pressure can be useful for long runs and high-BTU outdoor equipment.

Moving the final regulator closer to the appliance may increase the capacity available through the upstream run, but the final low-pressure piping still has to be sized correctly.

Propane Tank Vaporization Capacity Matters

Bulk propane sizing involves another factor that natural gas systems do not: tank vaporization capacity.

Appliances consume propane vapor, not the liquid propane stored inside the tank. The tank therefore has to convert liquid propane into vapor quickly enough to meet the total connected demand.

Propane vaporization capacity is affected by:

• Tank size
• Ambient temperature
• Amount of propane remaining in the tank
• Total BTU demand

This can become especially important with large fire pits or outdoor kitchens using several high-output appliances at the same time.

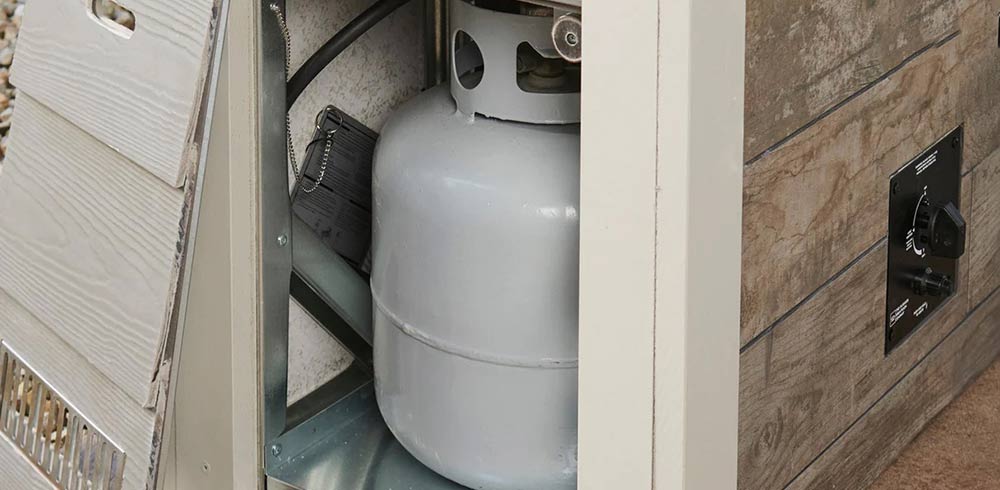

Portable Propane Tanks and Fire Pits

Portable propane cylinders, including the common 20-pound BBQ cylinder, are generally best suited to lower-BTU portable appliances.

As a practical guideline, standard portable-cylinder setups are generally best suited to applications around 100,000 BTU/hr or less. Actual available capacity depends on the cylinder, regulator, appliance requirements, ambient conditions, and other system factors.

The primary limitation is not simply how much propane is stored inside the cylinder. The propane has to vaporize fast enough to support the burner.

Available vaporization decreases as:

• Outdoor temperature drops
• The propane cylinder gets emptier
• Appliance BTU demand increases

This explains why a high-output fire pit may operate well with a warm, full cylinder but later develop a weak flame or poor performance. Under high demand, the cylinder may also frost or become noticeably cold.

Portable Propane Regulators Are Not Interchangeable

Regulators designed for portable propane cylinders should not be confused with bulk-tank first-stage regulators, second-stage regulators, or 2 PSI line regulators.

A portable regulator that appears to have the correct fitting or outlet pressure is not automatically suitable for a large fire feature. Its BTU rating and intended application also matter.

Do not attempt to increase burner output by removing or bypassing the portable regulator. The appliance must receive the pressure specified by its manufacturer.

For larger permanent fire pits, fireplaces, and multi-appliance outdoor kitchens, bulk propane with properly sized piping and staged regulation is generally a better solution than attempting to extend the capabilities of portable cylinders.

Diagnosing Fire Feature Gas Pressure Problems

If a fire pit or other gas fire feature is producing an unexpectedly weak flame, inconsistent performance, or pressure-related operating issues, contractors can work through the gas system systematically rather than immediately assuming there is a problem with the burner.

1. Confirm the fuel type. Verify that the appliance and installed components are configured for natural gas or propane as required.
2. Confirm the appliance's BTU input. Large burners place significantly greater demand on the gas system.
3. Review the manufacturer's product manual. Identify minimum and maximum inlet pressure, manifold pressure where applicable, regulator requirements, and the manufacturer's pressure-testing procedure.
4. Identify all upstream regulators. Determine what pressure is entering and leaving each stage of regulation.
5. Verify regulator capacity. Correct outlet pressure alone does not mean a regulator can provide enough BTUs for the appliance.
6. Review gas-line size and run length. Pipe diameter, equivalent length, fittings, pressure, and load all affect available capacity.
7. Calculate simultaneous demand. Account for other appliances that may operate at the same time.
8. Measure static pressure. This provides a baseline before the appliance starts.
9. Measure pressure under load. Follow the manufacturer's test procedure and monitor what happens when the fire feature operates at demand.
10. Test with other appliances operating. A significant pressure drop can indicate that the overall system does not have enough capacity.
11. For natural gas, verify meter and service capacity. The supply to the property must support both existing equipment and the new fire feature.
12. For bulk propane, consider vaporization capacity. Tank size, temperature, propane level, and total demand can all affect available vapor.

If you are selecting components for a new installation, Spotix carries gas fire pit burners, fire pit ignition kits, and gas fire pit regulators for a wide range of residential and commercial fire feature projects.

Real-World Fire Feature Gas Pressure Examples

Portable Propane: Strong Flame That Quickly Drops

A 125,000 BTU fire pit burner was connected to a standard portable BBQ propane tank. When the fire pit was first turned on, it produced large flames as expected. Shortly afterward, however, the flame would suddenly drop to small, candle-like flames.

The issue was the amount of gas being demanded from the portable cylinder. Although the burner was rated for up to 125,000 BTU, it could also operate at approximately 100,000 BTU. Two changes were made to improve performance:

1. The air mixer/orifice was replaced with a smaller size. Because the air mixer also serves as the orifice in this system, reducing its size limited the amount of gas flowing to the burner. This reduced demand on the portable propane tank and helped prevent it from freezing up.
2. A manual key valve was installed between the propane tank and burner. This allowed the gas to be turned on more gradually rather than introducing the full demand immediately, helping prevent the tank from locking out.

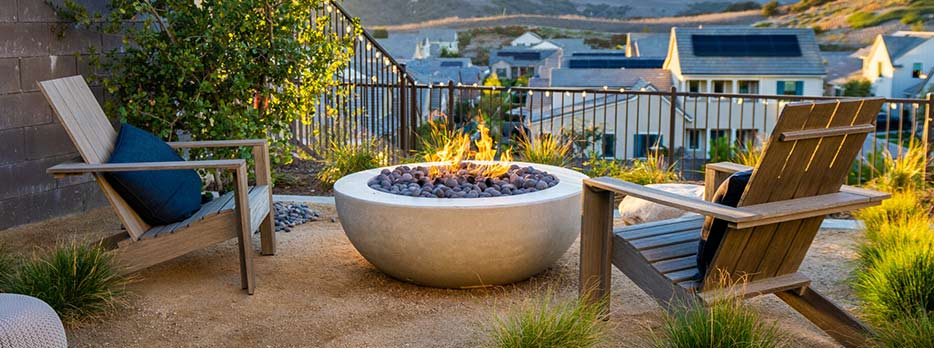

Natural Gas: Correct Pressure, but Not Enough Volume

Spotix worked on a large natural gas fire pit with electronic ignition that would light normally, produce a somewhat weak flame, and then shut itself off after a few minutes. Initial testing with a manometer showed pressure within the expected range, so the cause was not immediately obvious.

Further investigation found that the fire pit was being supplied through nearly 100 feet of 3/4-inch corrugated gas line. The line ran from the home's manifold, through the basement, and out to the patio, all at low pressure of approximately 7 inches WC.

The combination of the long run, multiple bends, and corrugated tubing created significant resistance. The restricted gas flow was substantial enough to produce an audible whistling noise inside the home. By the time gas reached the fire pit, the system could not deliver enough volume to support the burner's full BTU demand.

The pilot had enough gas to light initially. Once the main burner opened, however, the additional demand effectively starved the pilot of gas. As the pilot flame weakened, the flame sensor cooled and the electronic ignition system correctly closed the gas valve as a safety measure.

The solution was to trench a properly sized, dedicated gas line from the meter directly to the patio. Once the new line was installed, the fire pit operated normally.

Altitude and Local Requirements

Altitude may also affect appliance input ratings or gas-system calculations. Requirements vary by manufacturer and equipment, so contractors should review the manufacturer's documentation for installations at higher elevations.

Gas piping, regulator selection, pressure adjustment, and system sizing should be performed by a qualified professional using the appliance manufacturer's requirements and all applicable local codes.

Final Thoughts

A successful fire feature installation depends on more than achieving the correct static gas pressure. The complete system must be able to deliver the required gas volume while the appliance is operating, taking pipe sizing, run length, regulator capacity, connected load, meter or tank capacity, and fuel type into account.

For contractors, checking pressure under load and evaluating the entire gas system can help identify supply problems before they become callbacks. Always use the manufacturer's product manual as the primary reference for pressure requirements and testing procedures.
